Description
Walbro performance fuel systems are designed to deliver the speed, power, torque and reliability you expect. That’s why Walbro high-performance fuel pumps and modules are developed and built specifically to meet the demands of today’s high-pressure and high-flow engines with efficient and durable performance.
- All pumping components have been validated to OEM specifications for approved use in E85/flex fuel applications

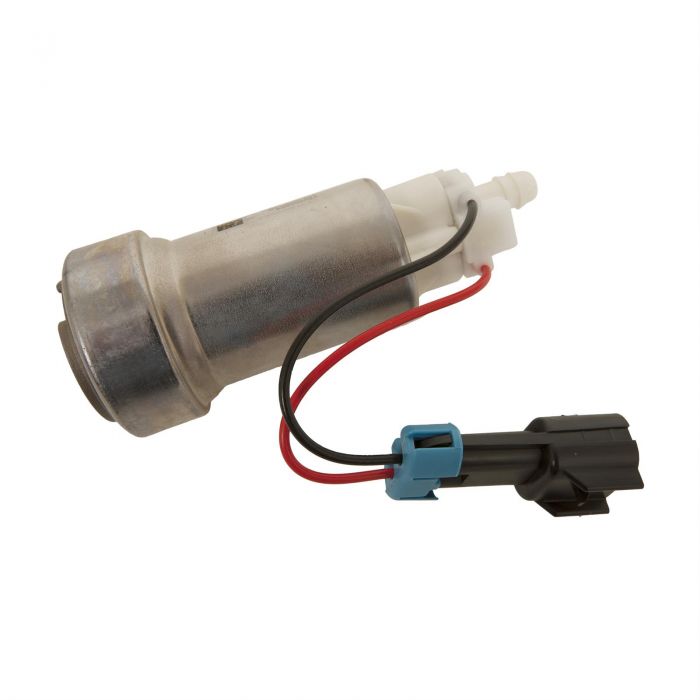

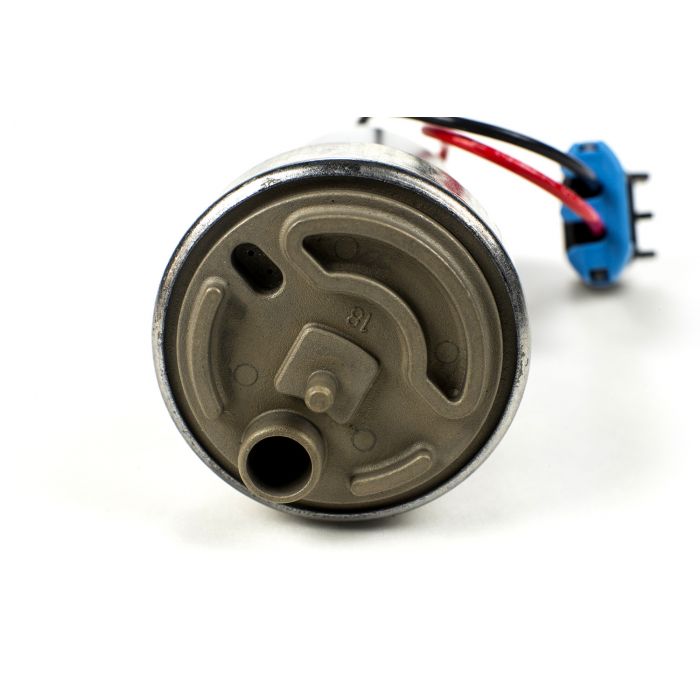

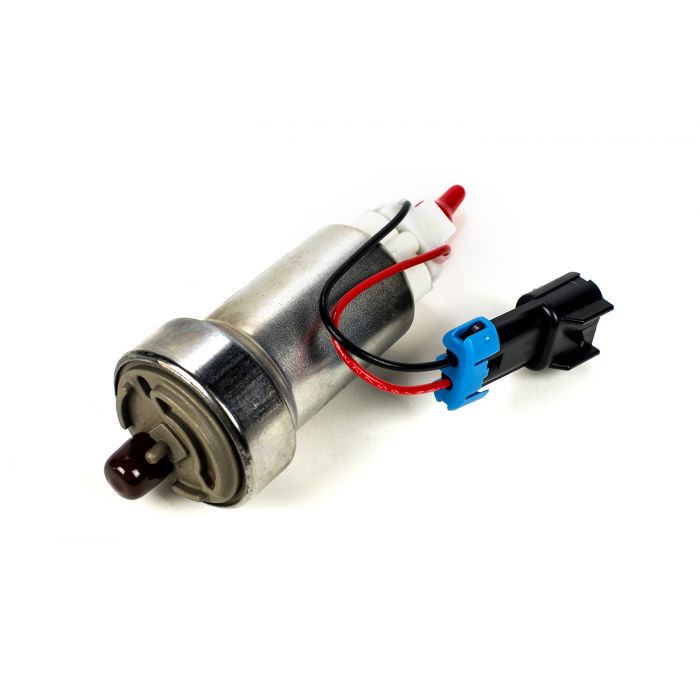

- 100% Authentic & Genuine Walbro/ TI Automotive E85 Racing In tank 450 LPH high pressure fuel pump
- The F90000274 requires modifications to system wiring, fuel lines and the fuel module, and should be professionally installed.
- The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades.
- Designed for high performance engines exceeding 750hp.
- Designed for E85 or Gasoline applications.
- Flow Rate: 450LPH
- Operating Pressure: 35-112 PSI
- The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge.
- This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 20 percent higher than conventional pumps.
Specifications
- 465 lph @ 40 psi and 13.5V (14.1 amps) in gasoline Outlet diameter: 10mm (3/8″) Diameter (upper body) 39mm Diameter (lower body) 50mm
