Description

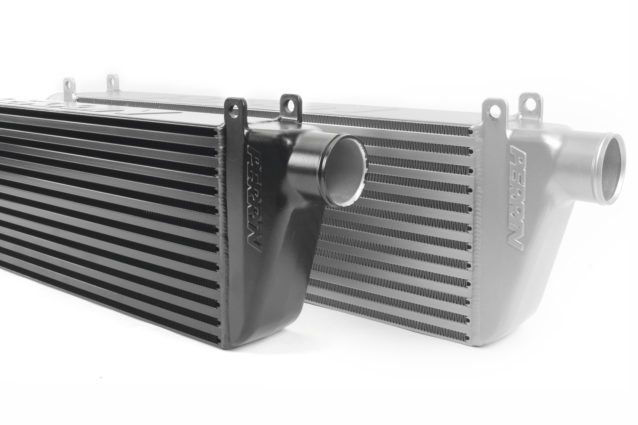

INTERCOOLER CONSTRUCTION
The PERRIN Intercooler Core is 28″ long x 9.25″ tall x 3.5″ deep with a volume of 906.5 cu-in. which gives the PERRIN Intercooler the best overall design for cooling and pressure drop! The 3/8″ bar and plate design is more durable than the tube and fin design and has the ability to withstand rocks and other debris.
INTERCOOLER FINISH
Every PERRIN Intercooler Core features a powder coat finish to protect your intercooler from the elements. There are two finish options: bright silver or stealth black.
END TANKS DESIGN PERRIN
End Tanks are designed to disperse hot charge air across the intercooler core. Turbulence is eliminated by eliminating 90° corners and adding a smooth, gradual taper from top to bottom.

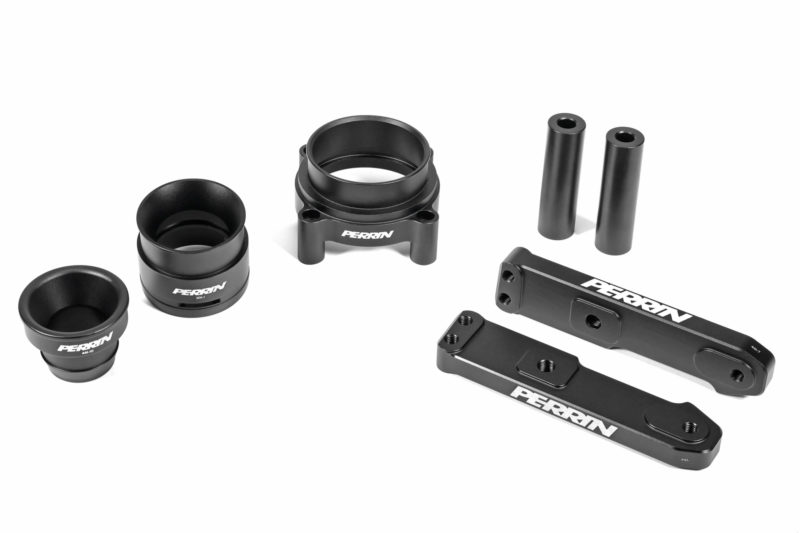

THROTTLE BODY ADAPTER
The PERRIN Front Mount Intercooler Kit comes with a CNC machined throttle body adapter to simplify the boost tube connection.

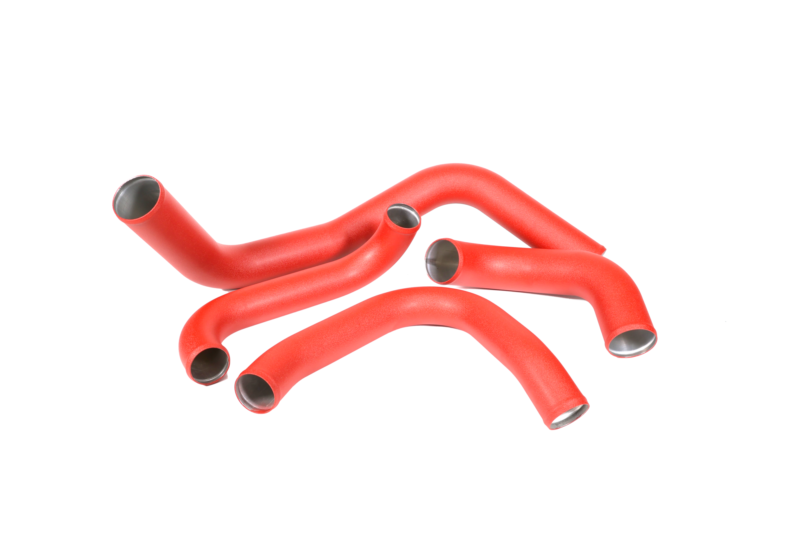

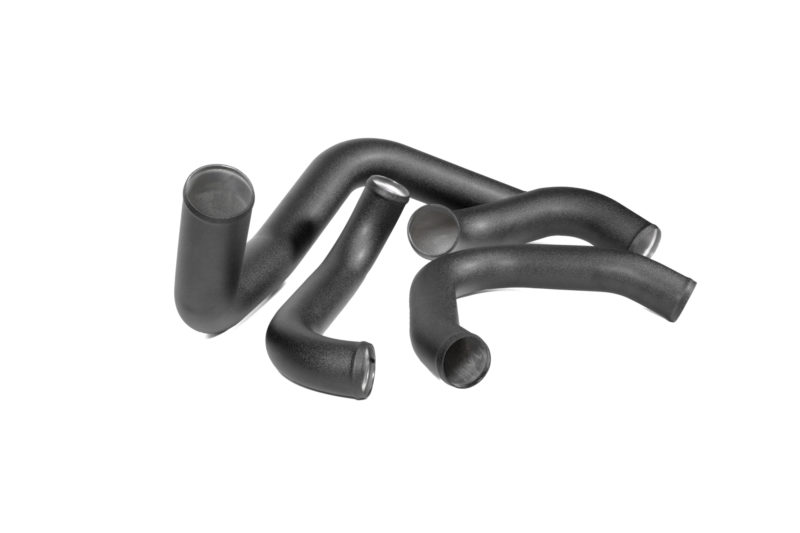

BOOST TUBE CONSTRUCTION
With boost tubes up to 2.75″ in diameter, PERRIN Boost Tubes feature smooth routing while remaining large enough to flow more WHP than most turbos can put out. They are CNC mandrel bent from lightweight aluminum tubing and feature an oversized, beaded end to ensure the hose clamps and couplers stay connected and sealed, no matter your boost level!
BOOST TUBE FINISH PERRIN
Boost Tubes are powder coated for protection from the elements, making them look awesome for years to come. Boost tubes for this kit come in two finish options, texture powder coated black and red.
BOOST TUBE ROUTING
PERRIN Boost Tubes take the smoothest, shortest path to get air to and from the intercooler. Off the turbo, a short bend carries the hot side air charge past the intake system to the intercooler core. Cold side boost tubes are mounted high in the engine compartment clearing all accessories.
INTERCOOLER PRESSURE TESTING
PERRIN is one of the only intercooler manufacturers who pressure test every intercooler to 50 psi. Even the slightest leak can bleed turbo boost pressure out of the intercooler and cause your vehicle to lose power.

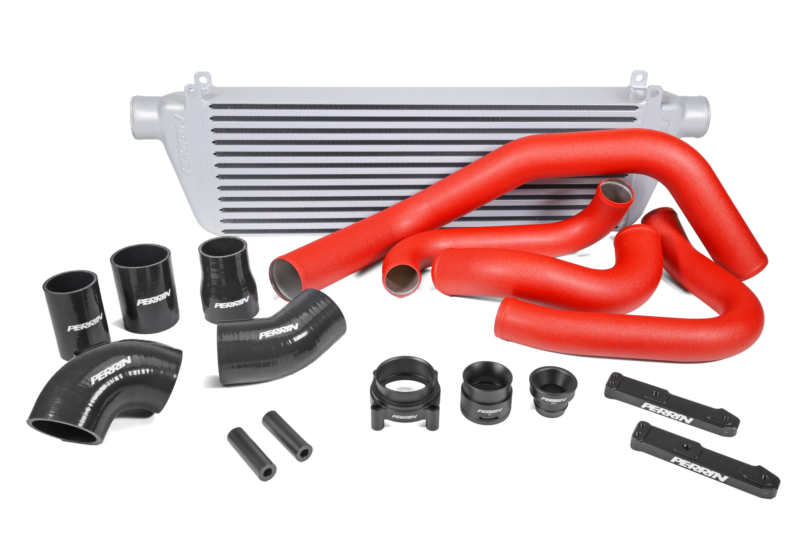

Included
(1) Front Mount Intercooler Core
(1) Set of Mounting Brackets
(1) Set of Boost Tubes
(1) Set of Clamps

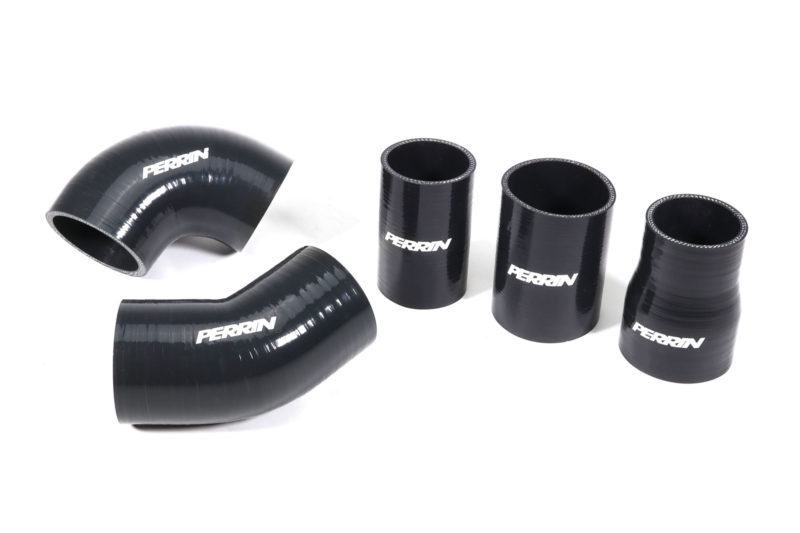

(1) Set of Silicone Couplers
(1) Charge Pipe Turbo Adapter
(1) PERRIN License Plate Frame
(1) PERRIN Intercooler Stencil
All necessary hardware for installation
Warranty & Instructions
