Description
High oil temperatures can wreak havoc on your high-performance flat four. Protect your investment with the Mishimoto direct-fit oil cooler kit designed specifically for the 2008-2014 Subaru WRX. The WRX has a lot to offer with its turbocharged engine and fantastic AWD system, but these vehicles are not factory-equipped with an oil cooler. Properly regulated oil temperatures become even more important if you have modified your vehicle or spend time tracking your WRX.
Mishimoto’s direct-fit oil cooler is engineered to reduce oil temperatures and extend the life of your engine. For optimal airflow and cooling, this kit includes a large 19-row cooler that is mounted in the front bumper with robust application-specific brackets. The included CNC-machined aluminum spacer provides ample room for our oil sandwich plate, making this kit compatible with the factory exhaust manifold heat shields. This kit includes preassembled stainless steel lines with -10AN fittings and a thermal reflective wrap that deflects radiant heat from the exhaust. With this setup, your WRX can achieve a 50+°F (34+°C) drop in oil temperatures with minimal pressure loss.

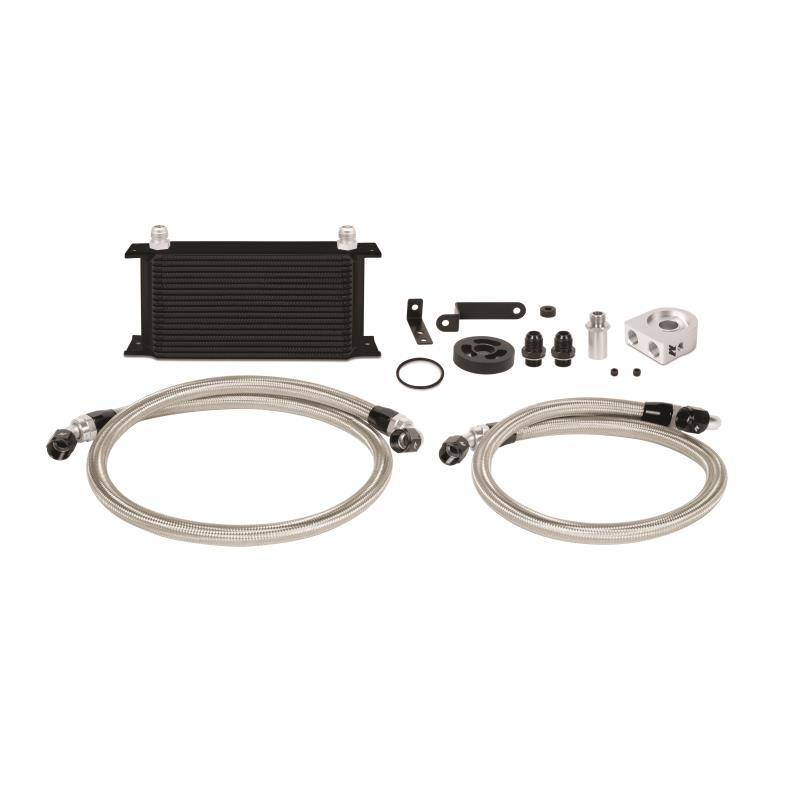

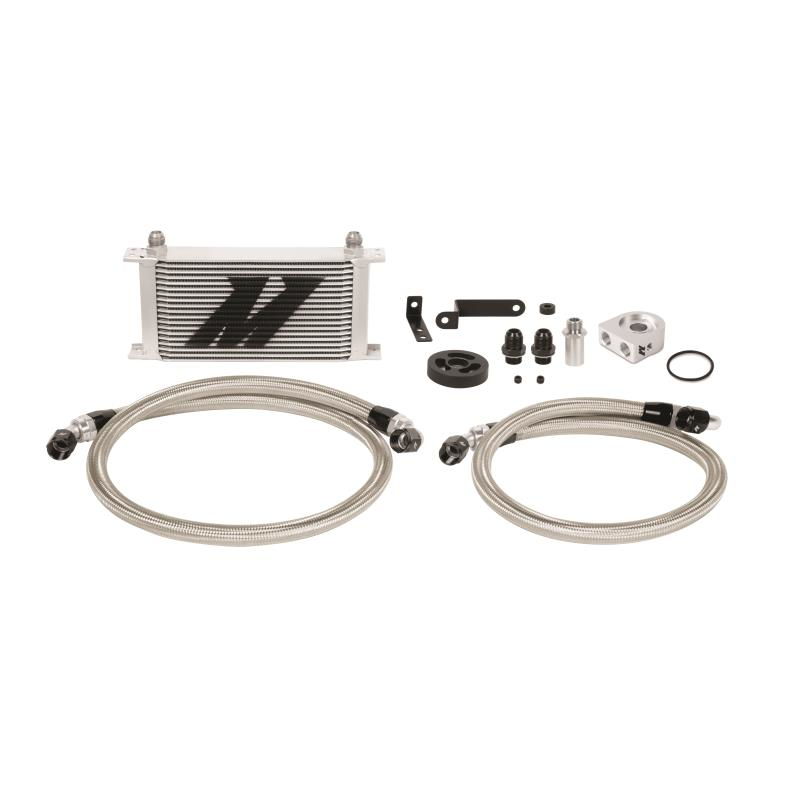

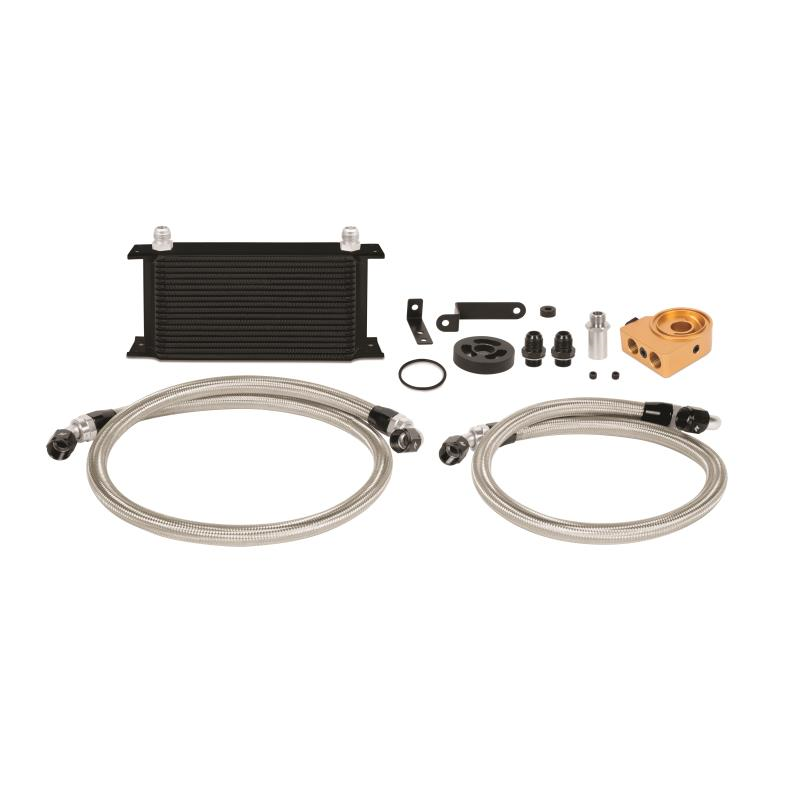

The Mishimoto Subaru WRX Oil Cooler Kit is available with a Sleek Silver or Stealth Black cooler and your choice of the Mishimoto Oil Sandwich Plate or the Mishimoto Thermostatic Oil Sandwich Plate, for even greater control over your oil temperatures. As with all our products, this kit includes the Mishimoto Lifetime Warranty.
Included
- Application Specific Mounting Brackets and Spacer
- 19-Row Oil Cooler
- 2ft, 11in Stainless Steel Braided Hose with 45-degree and 150-degree -10AN Fittings
- 3ft, 6in Stainless Steel Braided Hose with 45-degree and 90-degree -10AN Fittings
- M20 Thermostatic Sandwich Plate

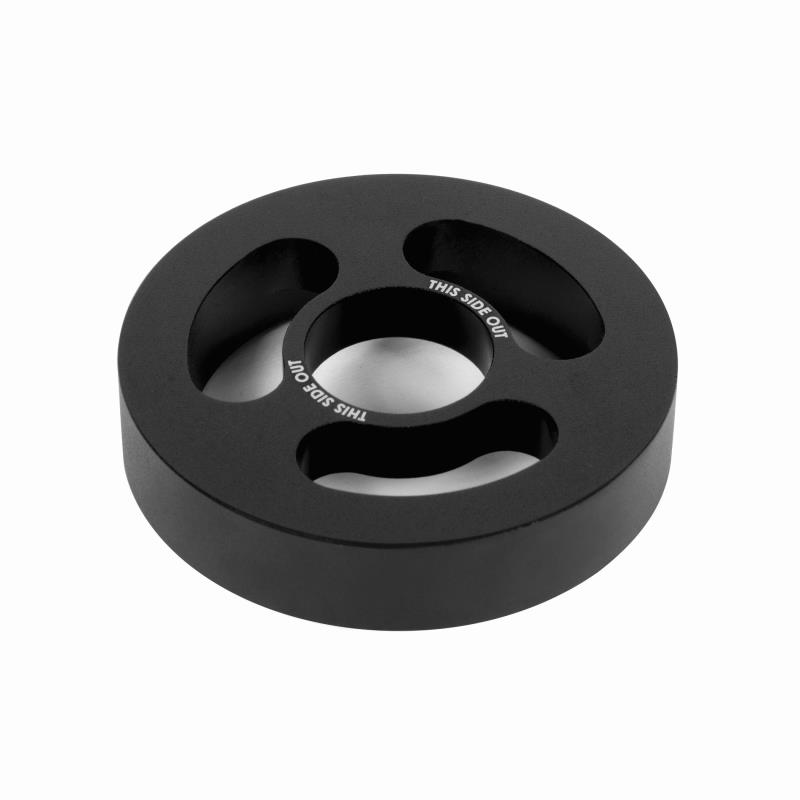

- 15mm CNC Sandwich Plate Spacer
- Application specific M20 Sandwich Plate Adapter
- M20 x -10AN Straight Fittings
- 2ft of thermal reflective wrap
- Mounting Hardware Set
- Mishimoto Lifetime Warranty
NOTES
This oil cooler kit will only work with models with the single scroll turbo and un-equal length exhaust manifold. Models with a twin scroll turbo and equal length exhaust manifold may not be compatible with this oil cooler kit. Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 lb-ft
Installation Notes
Torque Specs
Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.
Please Note
It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
Mishimoto fully inspects and cleans all products prior to packaging. However, it is recommended that customers flush the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping.
