IAG EJ Competition Series Oil Pan Package (Silver Pan / Pickup / Comp Baffle / Windage Tray) – 02-14 WRX / 04-21 STI / 05-09 LGT / 04-13 FXT

IAG EJ Competition Series Oil Pan Package (Silver Pan / Pickup / Comp Baffle / Windage Tray) – 02-14 WRX / 04-21 STI / 05-09 LGT / 04-13 FXT

$739.99

COMPETITION SERIES PACKAGE

IAG now offers our V2 Oil Pickup, Competition Series Baffle and Windage Tray combined with our Competition Oil Pan as a complete package. This bundle is designed to work together as a complete unit. The IAG EJ Competition Series Oil Pan Package comes complete with all the necessary components and hardware required to replace the oil pan on your WRX, STI, Legacy GT or Forester XT Subaru.


Install Notes:

  • IAG oil pickup spacer is included and required when using the IAG oil pickup.
  • Flaps should be inspected every 12-24 months depending on use.
  • Subaru EJ25 dipstick (Part# 11140AA150) is required when using an IAG Oil Pan on the 02-05 WRX EJ20 engine.



This product may not be available for local pick-up. Contact us for more details.

FREE SHIPPING ON ORDERS OVER $249

Authorized Dealer

Description

INCREASED OIL CAPACITY

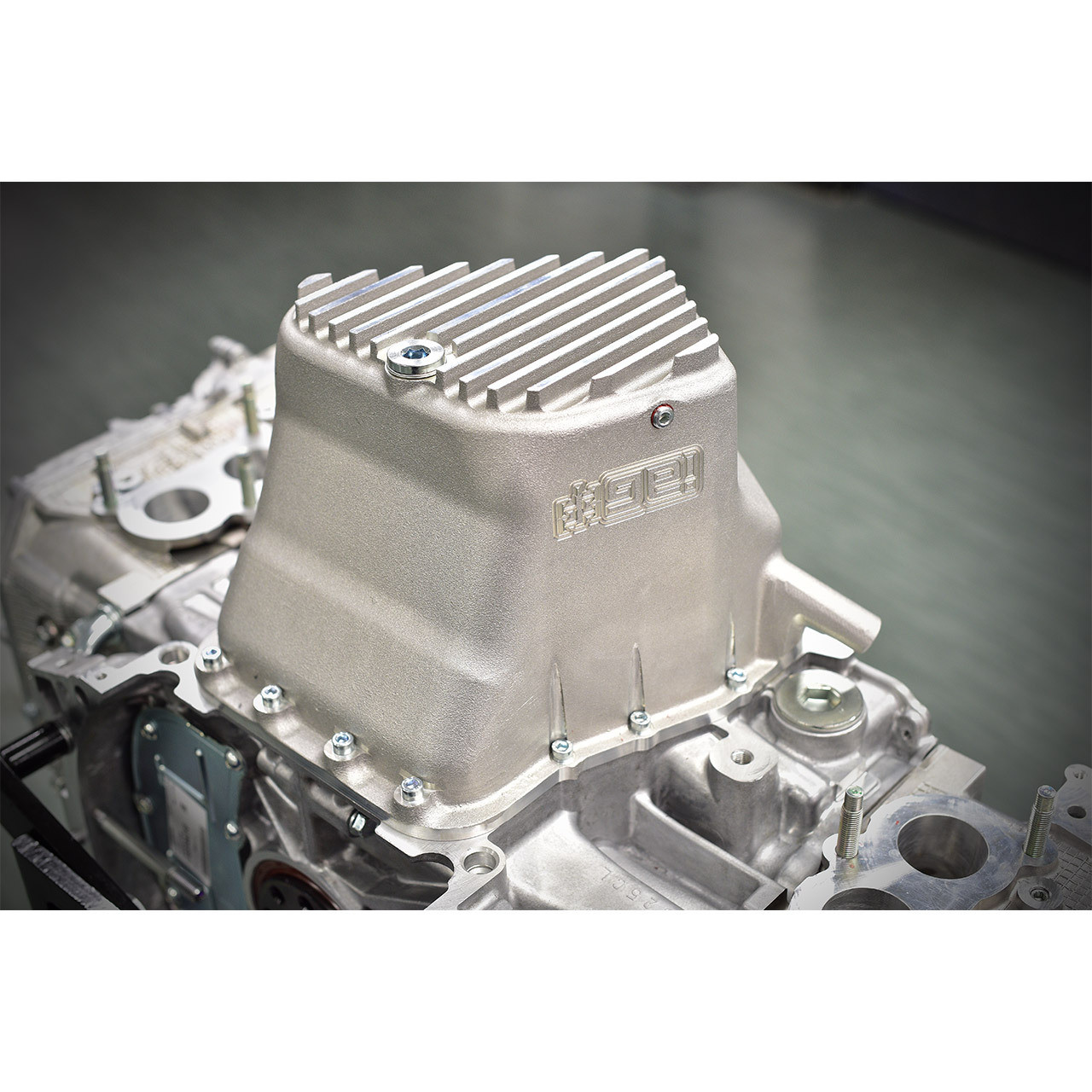

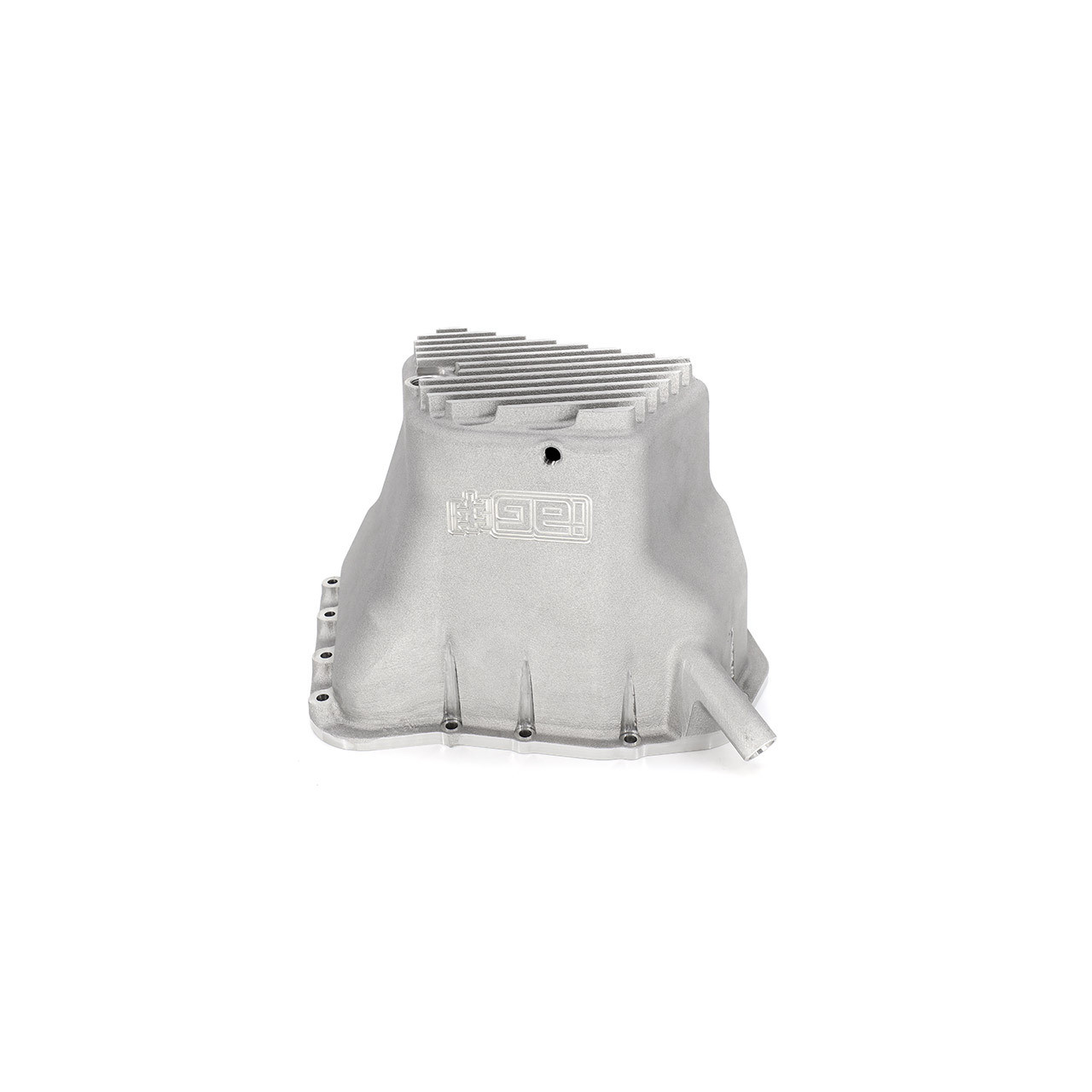

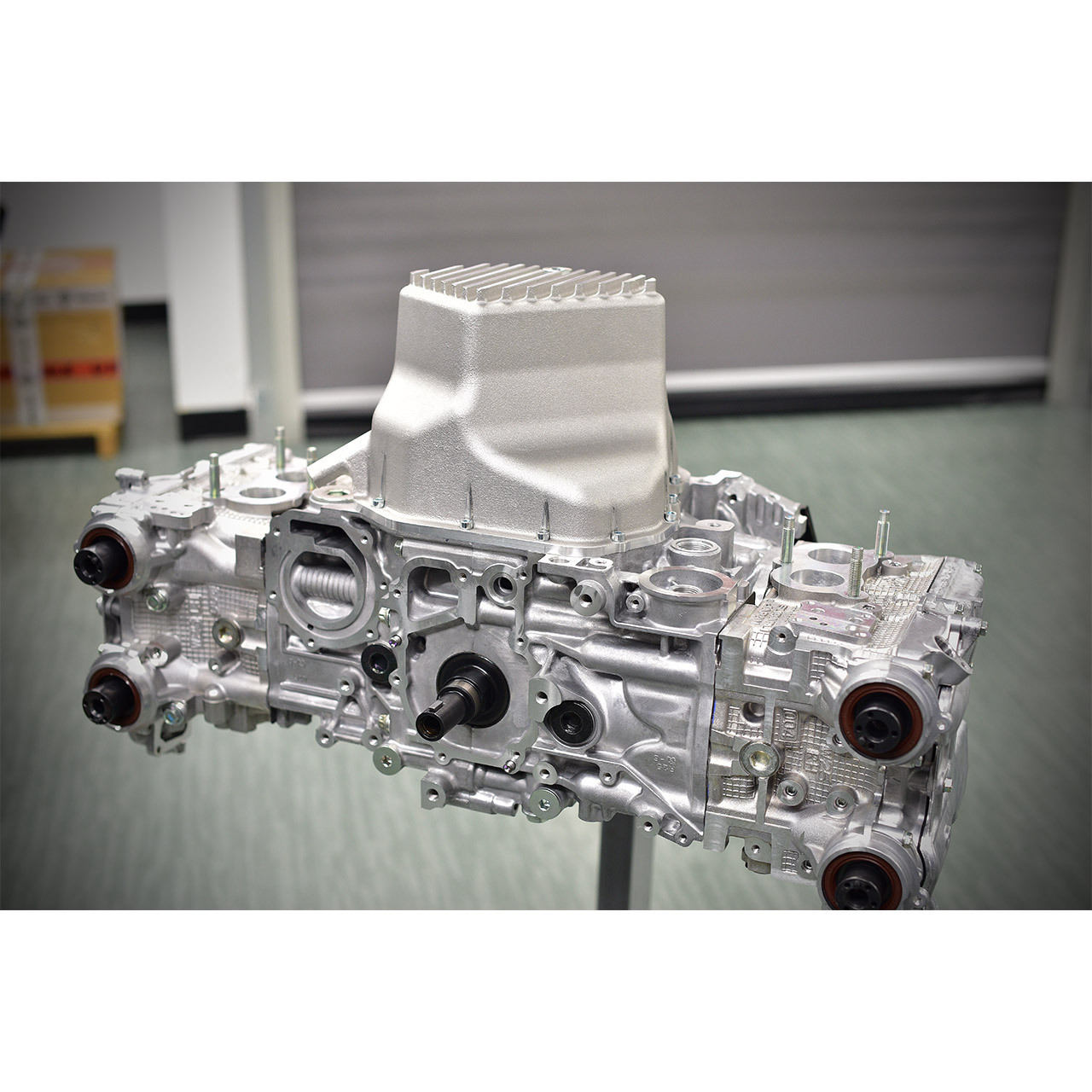

The IAG EJ Competition Series Oil Pan Package was created for Subaru WRX, STI, LGT, and FXT models. Its distinctive CNC-machined design makes it suitable for both street and track applications. This Competition Series Oil Pan is made from durable cast aluminum and it is compatible with various popular headers. The oil capacity of this pan surpasses the OEM version by up to 30%.


REDUCED OIL TEMP & BOTTOM FACING DRAIN PLUG

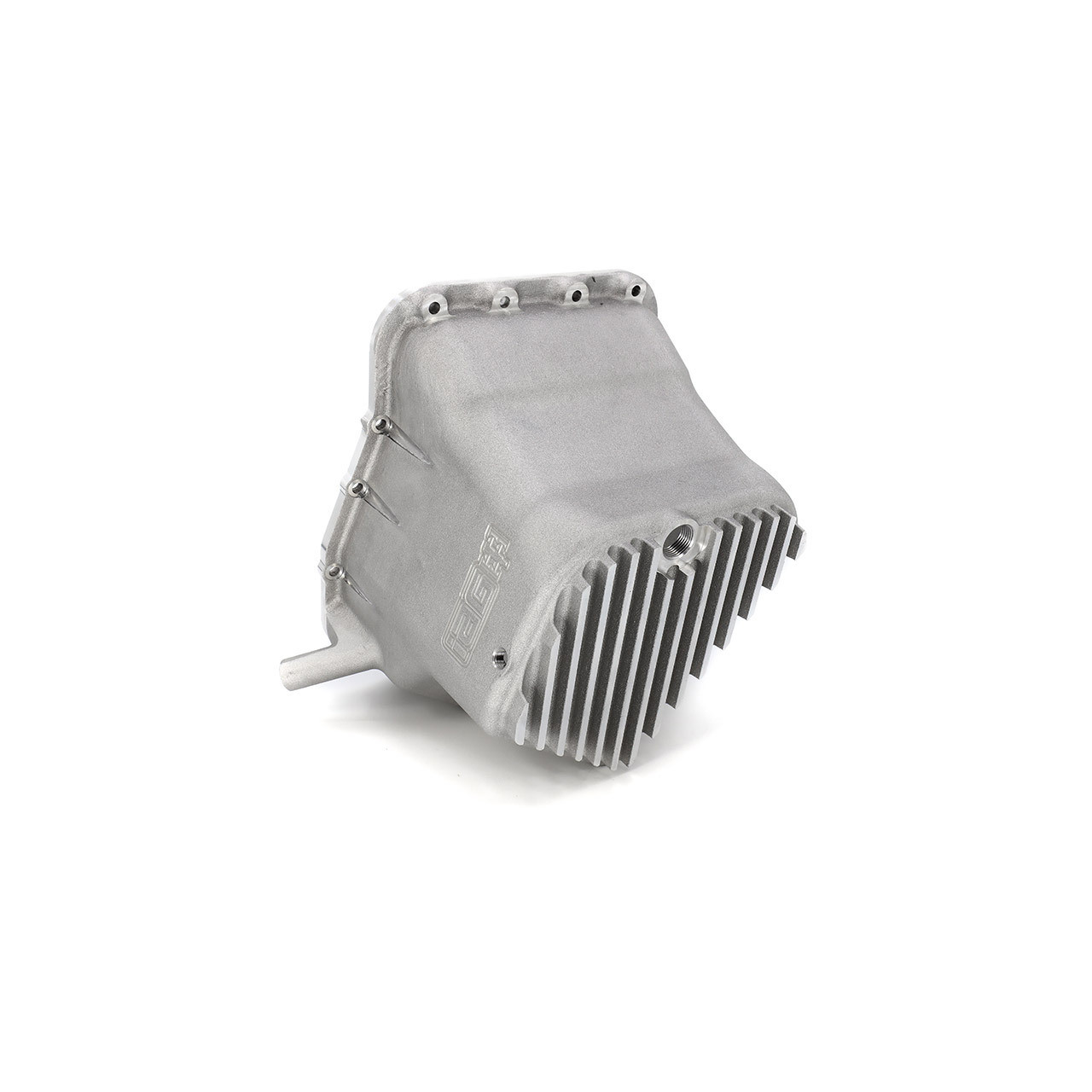

The Competition Series Oil Pan uses external cooling fins to help dissipate heat from the oil as air flows over them. It also comes with a bottom-facing drain plug for convenient maintenance access and to ensure thorough removal of any remaining used oil during servicing. The EJ Comp Series Oil Pan comes with a 1/8th inch NPT port, allowing for compatibility with various popular oil temperature sensors. In the event that you don’t use the sensor port, we’ve provided a 1/8th inch NPT plug to seal the sensor housing.


ADVANCED ENGINEERING

The IAG Performance EJ Competition Series Oil Pan incorporates several thoughtfully designed features, such as an OEM-style drain plug and crush ring that removes the necessity to look for specialty washer sizes. The upper flange surface is precision-machined for better hardware fitment. The pan includes a molded o-ring for the upper flange, allowing for easier installation and removal, and there is no need to use silicone sealant when installing. The pan is designed to use the included OEM style Viton dipstick o-rings and has a unique chamfer to aid in the installation of the dipstick.


THE COMPETITION SERIES OIL BAFFLE

The IAG Competition Series Oil Baffle is designed to reduce blow-by and protect your Subaru’s engine from oil starvation during high RPM and G-force driving situations. The Comp Series Baffle is intended for track use, but it is also suitable for street driving applications. This baffle incorporates Viton one-way flapper valves designed to keep oil in the area closest to the pickup. When paired with the louvers in our optional windage tray, our baffle prevents oil from returning to the upper crankcase area and directs it downward into the oil pan, providing a consistent oil supply to the pickup. IAG’s built-in oil baffle is compatible with the IAG V2 oil pickup and various other popular oil pickups.

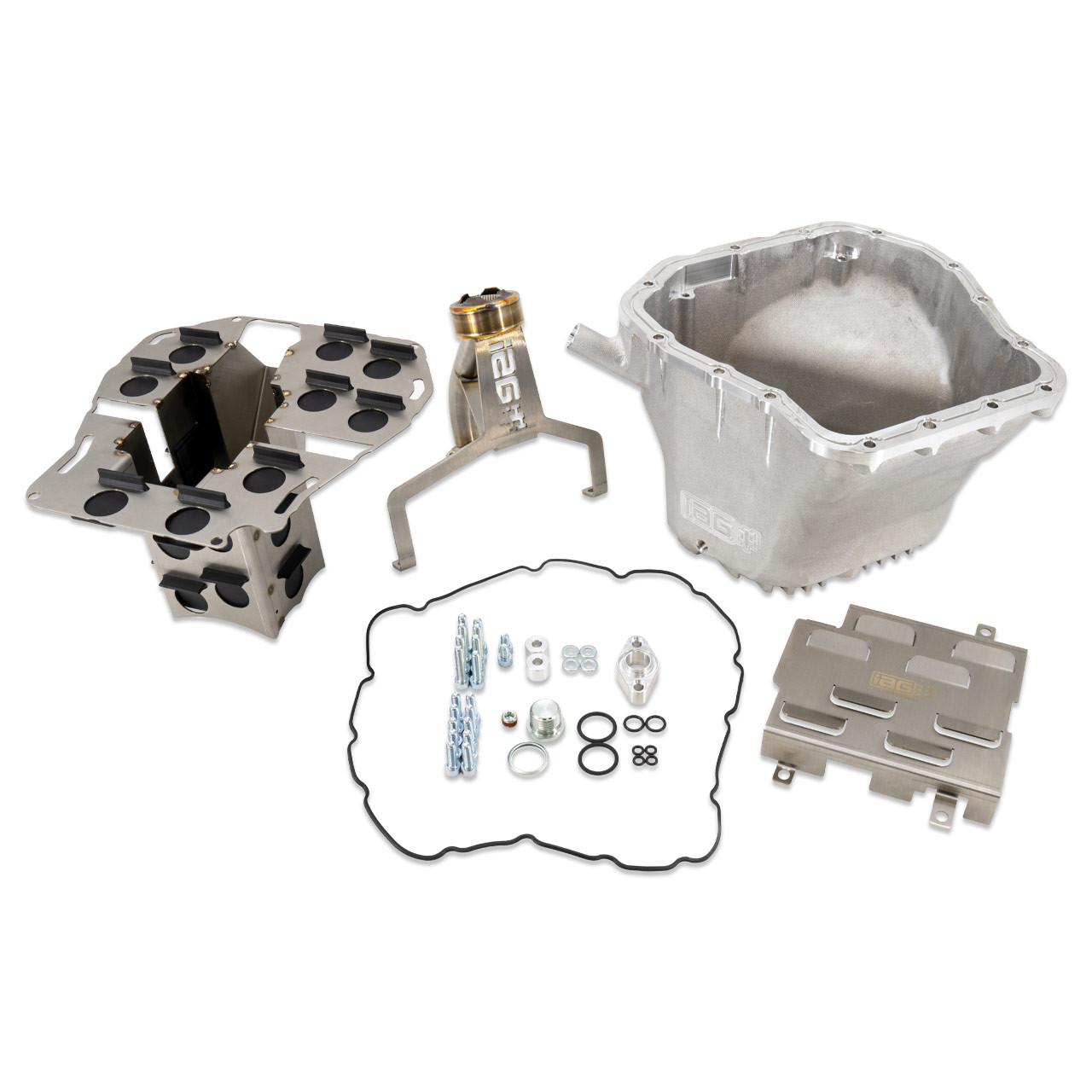

Included

  • (x1) IAG Competition Series Oil Pan Baffle w/ Viton Valves
  • (x1) IAG Windage Tray
  • (x1) IAG V2 Oil Pickup
  • (x1) Oil Pan Mounting Hardware Pack
  • (x1) Oil Baffle Hardware Pack
  • (x1) Oil Pickup Spacer Kit
  • (x1) M20 Zinc Plated Oil Drain Plug & OEM Style Crush Washer/Gasket
  • (x1) 1/8″ NPT Zinc Plated Plug
  • (x1) Oil Pan O-ring
  • (x2) Oil Pan Dipstick Viton OEM Sized O-rings
  • All necessary hardware required for install
  • Fitment: 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT



Compatibility

  • 2002-2014 WRX
  • 2004-2021 STI
  • 2004-2013 Forester XT
  • 2005-2009 Legacy GT
