Description
Finally a GD intake with the looks to match its performance.
Our design requirements for this intake are similar to our others: the intake should reduce as much restriction as possible, it should be easy to tune and accurately measure incoming airflow, it should properly filter out potentially harmful particles, and it should look like something you’re proud to have in your engine bay.
We designed this intake to meet these goals by using only minimal bend angle and pipe length which helps to decrease restriction. Additionally, our low restriction washable air filter helps here too, while still filtering particles down to 5 microns. We have also incorporated an air straightener into our design, an invaluable feature that was not utilized on the OEM airbox until later models. Finally, we have continued our “StealthBox” heatshield design, utilizing it to not only keep hot air away from the air filter, but to cover up unsightly components such as the ABS pump.
Less obvious features of this intake include the location of the air filter. Specifically that we made sure that the filter is not close enough to the ground such that water/hydrolocking is a concern. The heatshield also contains provisions to mount the factory clips that hold the two coolant hoses that would traditionally mount to the OEM airbox. This keeps them out of the way and maintains a clean aesthetic. The design of the heatshield also acts to hide the power steering pump reservoir, but does not hinder inspection or filling. Overall what is accomplished is a true hybrid of traditional Cold Air Intakes and Short Ram Intakes, with all the advantages and none of the compromises.
Quick Specs
- Hybrid Cold Air/Short Ram Design – Combining the advantages and eliminating the negatives of both traditional intake designs
- Air straightener – A key component for accurate and consistent MAF sensor readings.
- Custom reusable high flow air filter – Integrated velocity stack entrance smooths incoming air
- StealthBox Heatshield – Our signature heatshield design which provides cool air while hiding ugly components
- Made in the USA – Right here in Minnesota, in fact
- 40 min Installation – Extremely simple with our written and video guides

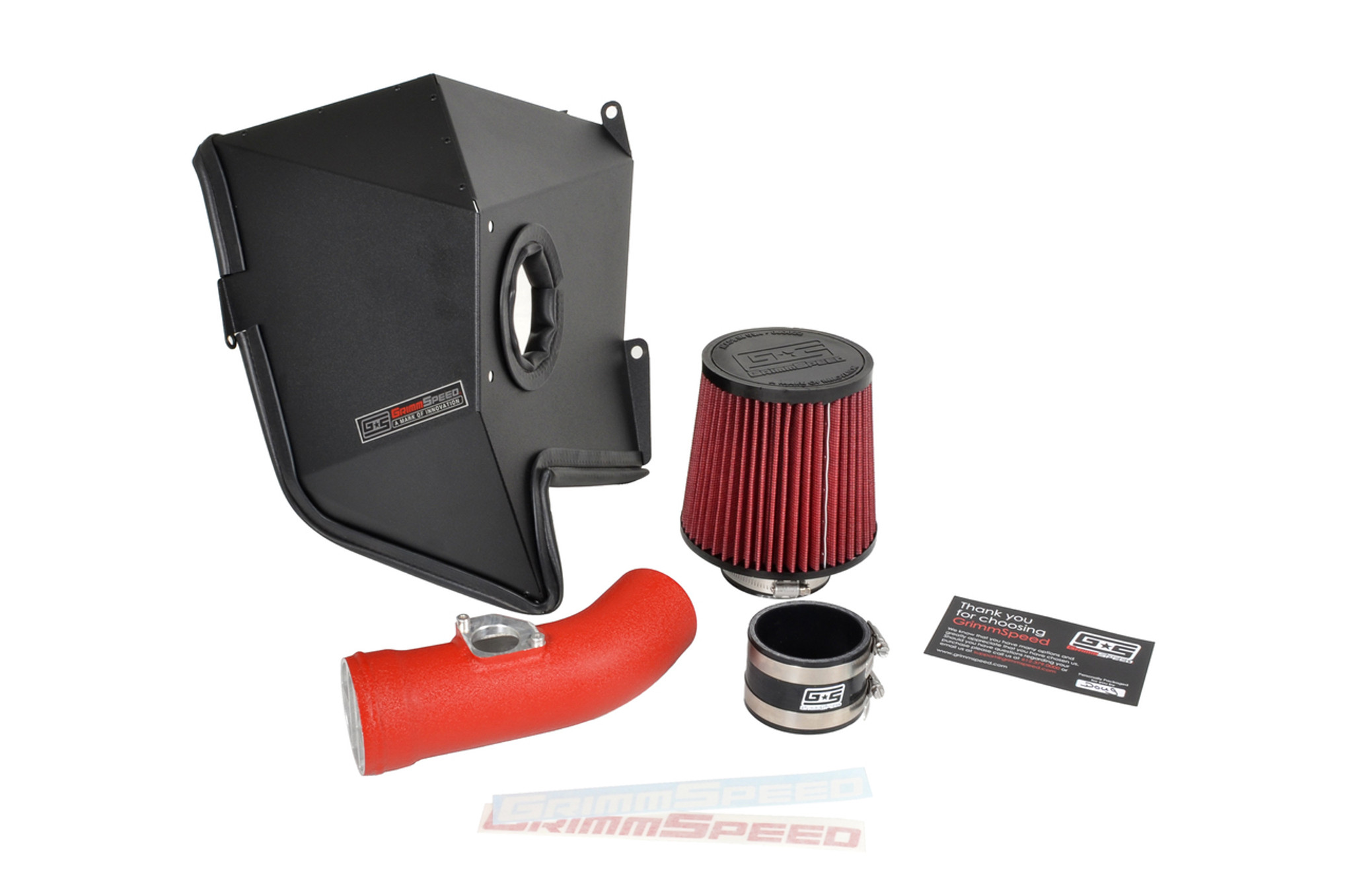

Included

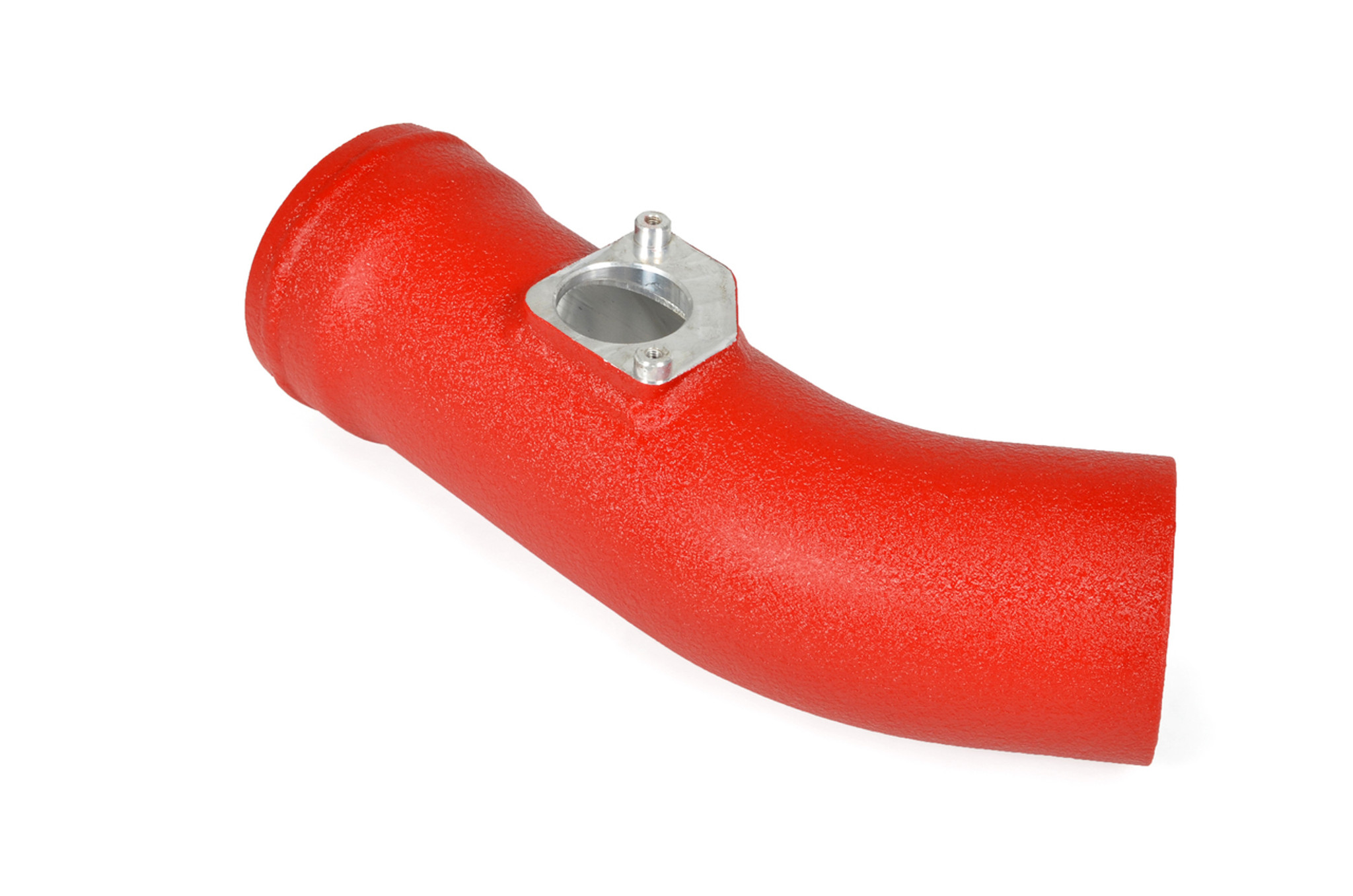

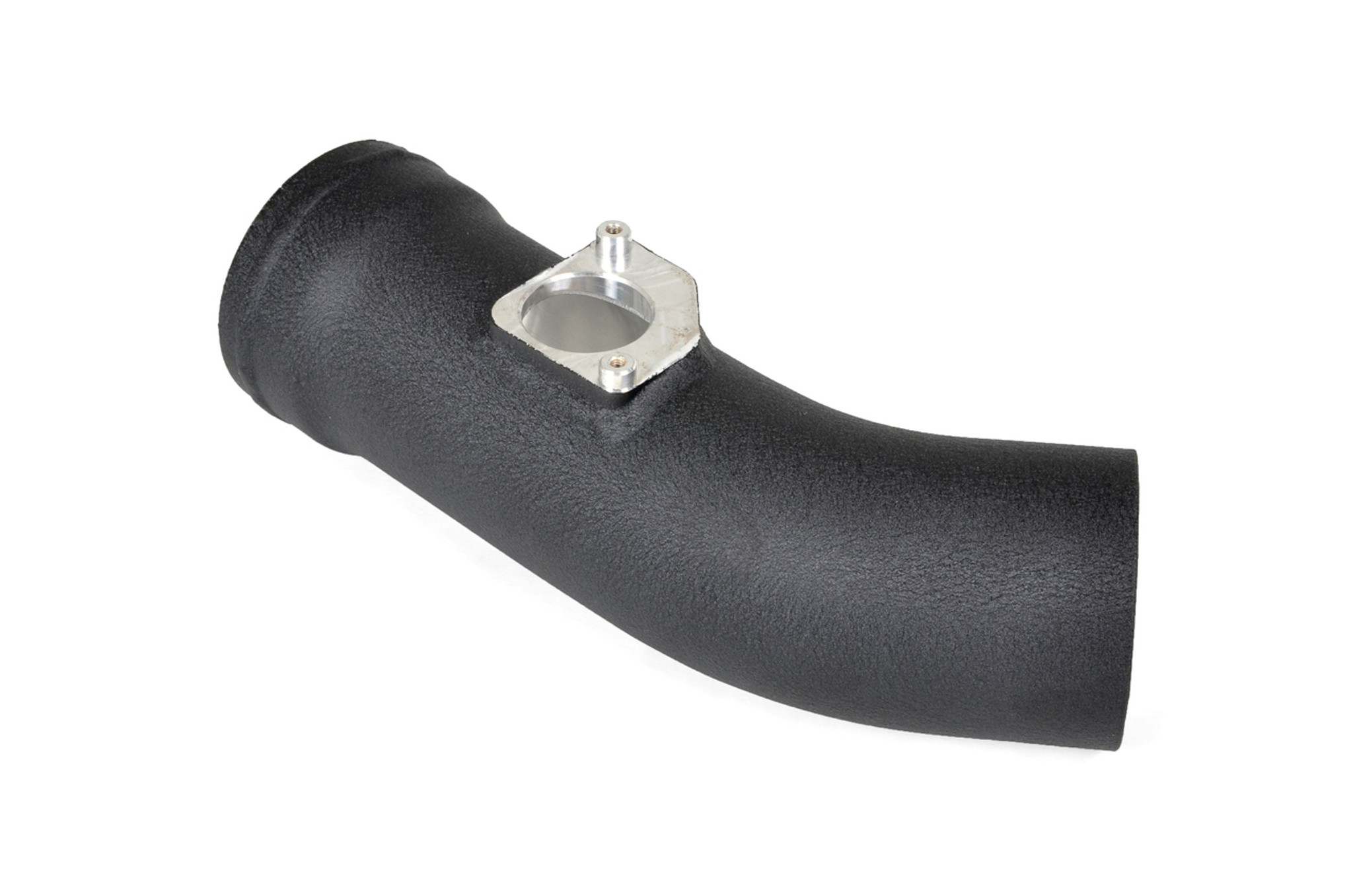

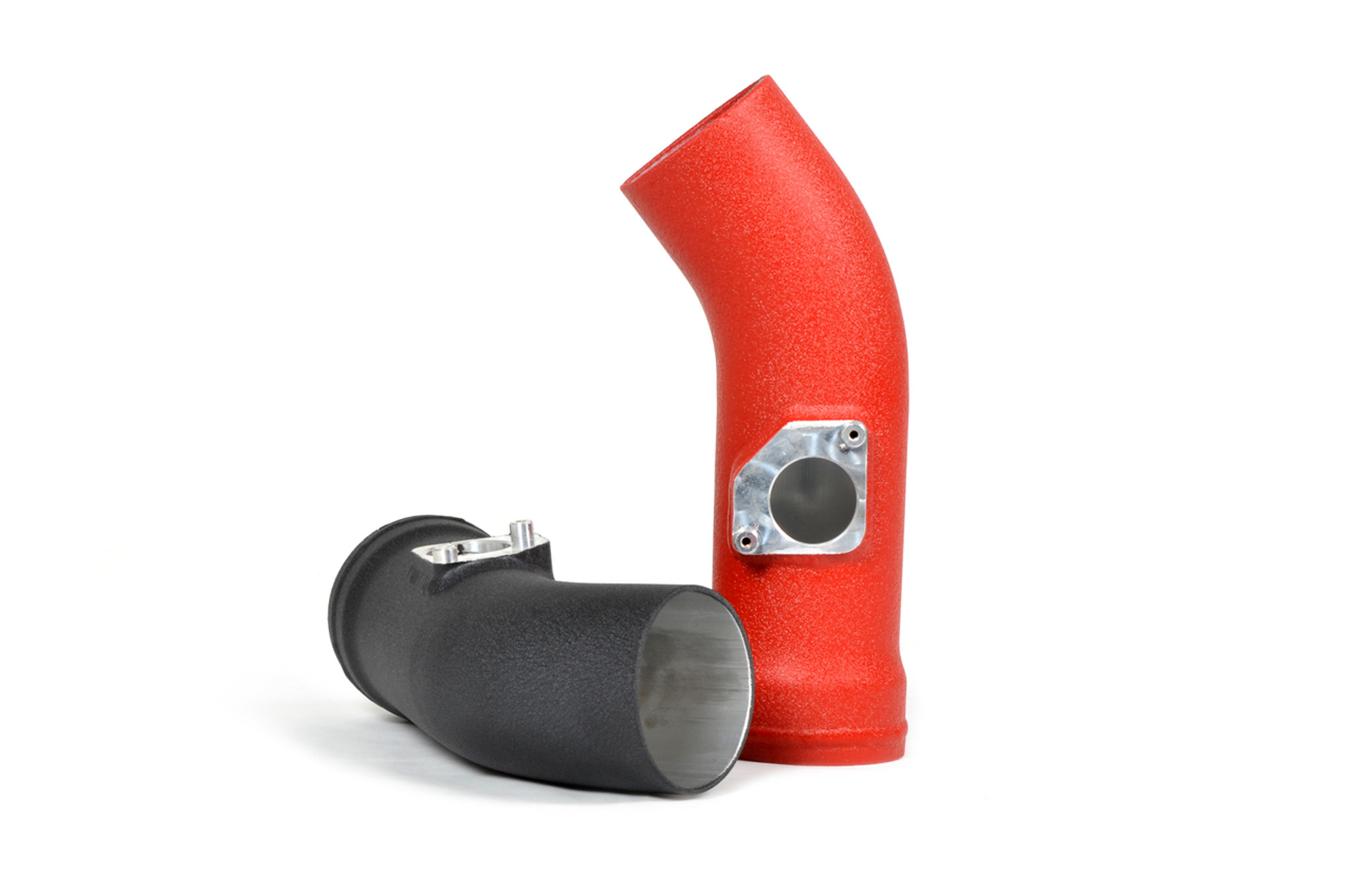

- 1x Intake Tube
- 1x High-flow Dry Filter
- 1x Silicone Hose Coupler
- 1x Heat Shield Assembly
- 3x Hose Clamps

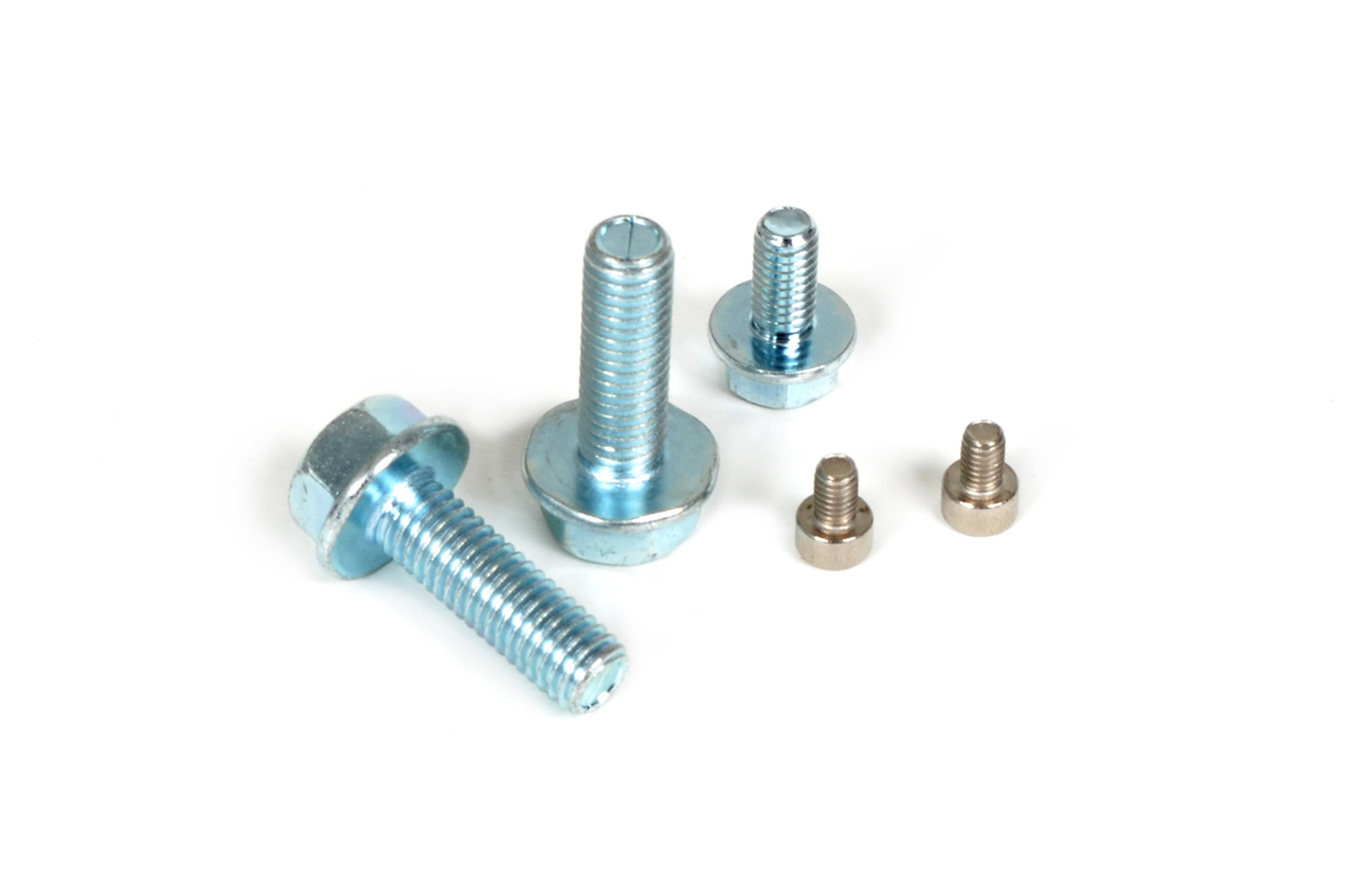

- 2x MAF Flange Screws
- 3x Precut Rubber Sealing Strip
- 3x Airbox to Chassis Bolts
