Fuel Injector Clinic – 1000CC Injector Set (HIGH-Z) – 02-14 WRX / 07-21 STI

Fuel Injector Clinic – 1000CC Injector Set (HIGH-Z) – 02-14 WRX / 07-21 STI

$457.00

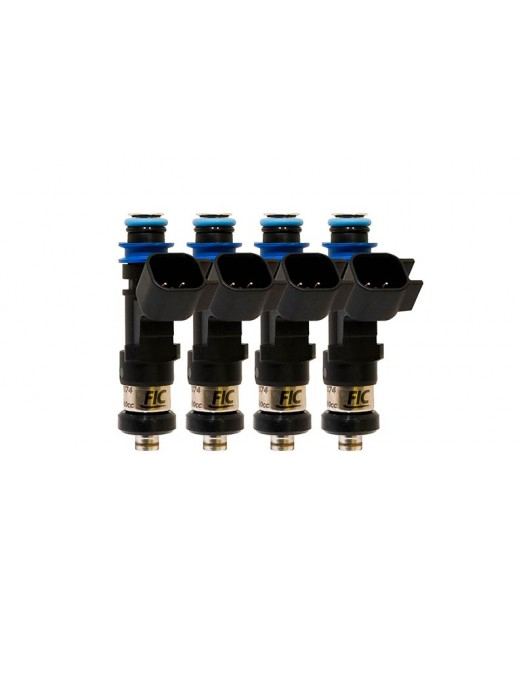

Subaru WRX (’02-’14) & STi (’07+)Fuel Injector Clinic Injector Set (and fits ’04-’06 STi with WRX tumbler conversion): 4x1000cc Saturated / High Impedance Ball & Seat Injectors. Utilizing the latest injector technology and featuring state of the art matching with Data Match Technology.


Includes pigtails PGT USC4 or add Plug & Play adaptors PADPUtoD4.




In stock

This product may not be available for local pick-up. Contact us for more details.

$

FREE SHIPPING ON ORDERS OVER $249

Authorized Dealer

Description

Subaru WRX (’02-’14) & STi (’07+)Fuel Injector Clinic Injector Set (and fits ’04-’06 STi with WRX tumbler conversion): 4x1000cc Saturated / High Impedance Ball & Seat Injectors. Utilizing the latest injector technology and featuring state of the art matching with Data Match Technology. Includes pigtails PGT USC4 or add Plug & Play adaptors PADPUtoD4.

This injector set is precisely matched using Fuel Injector Clinic’s proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.


Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid.

Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.

Fuel Injector Clinic injectors are set up to and include all o-rings needed to fit the factory application for the listed vehicle. If you are using aftermarket or other unusual setups please contact us prior to placing your order to make sure you receive injectors that fit properly.

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.


This set of injectors requires you to change the injector plug on the wiring harness in your car. This can be done by soldering in the pigtails (included with purchase) to replace the plugs currently on your harness, or you can choose to purchase the optional plug-n-play adaptors which will convert from the type of plugs on these injectors to the plugs on your harness without any need for cutting or soldering.

This plug conversion is made necessary because FIC always chooses to provide brand new, unused injectors for its performance applications. We do not believe that increasing the chance of a failure due to using remanufactured or core program based injectors is ever warranted.




Compatibility

  • 2007-2021 STI
  • 2002-2014 WRX



Specs

FITMENT SPECIFICATIONS

  • Bottom O-ring Outer Diameter 16mm Square Seal
  • Cylinder Quantity 4
  • Height 53mm
  • Impedance High-Z
  • Plug and Play Adaptor PADPUtoD4
  • Top O-ring 11mm

HORSEPOWER SUPPORTED

  • Engine Aspiration turbocharged
  • Fuel Pressure 43.5
  • WHP on E85 at 43psi 90%DC NA 448.35
  • WHP on E85 at 43psi 90%DC Supercharged 407.59
  • WHP on E85 at 43psi 90%DC Turbo 373.63



  • WHP on E85 at 58psi 90%DC NA 517.85
  • WHP on E85 at 58psi 90%DC Supercharged 470.77
  • WHP on E85 at 58psi 90%DC Turbo 431.54



  • WHP on Gas at 43psi 90%DC NA 582.86
  • WHP on Gas at 43psi 90%DC Supercharged 529.87
  • WHP on Gas at 43psi 90%DC Turbo 485.71



  • WHP on Gas at 58psi 90%DC NA 673.20
  • WHP on Gas at 58psi 90%DC Supercharged 612.00
  • WHP on Gas at 58psi 90%DC Turbo 561.00

Plug and Play Data

Plug and Play Data for Accesstuner
