Description

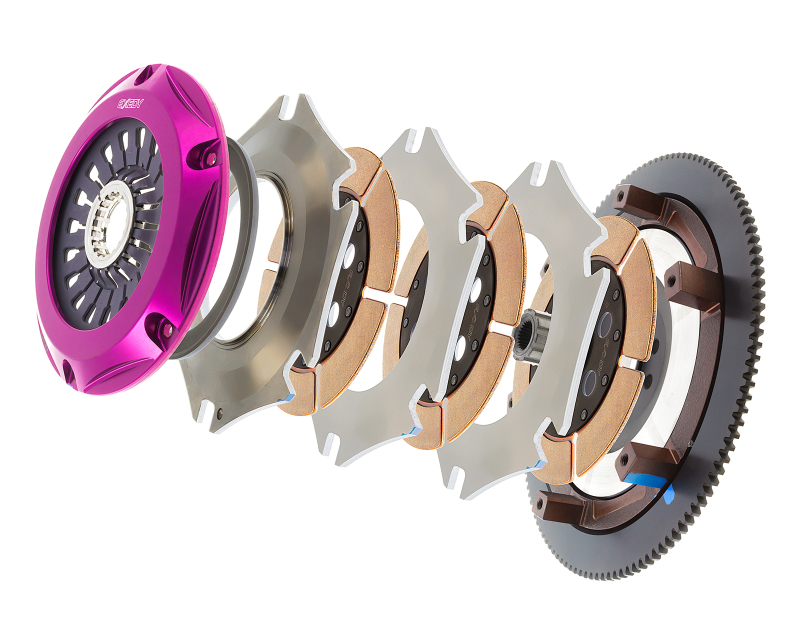

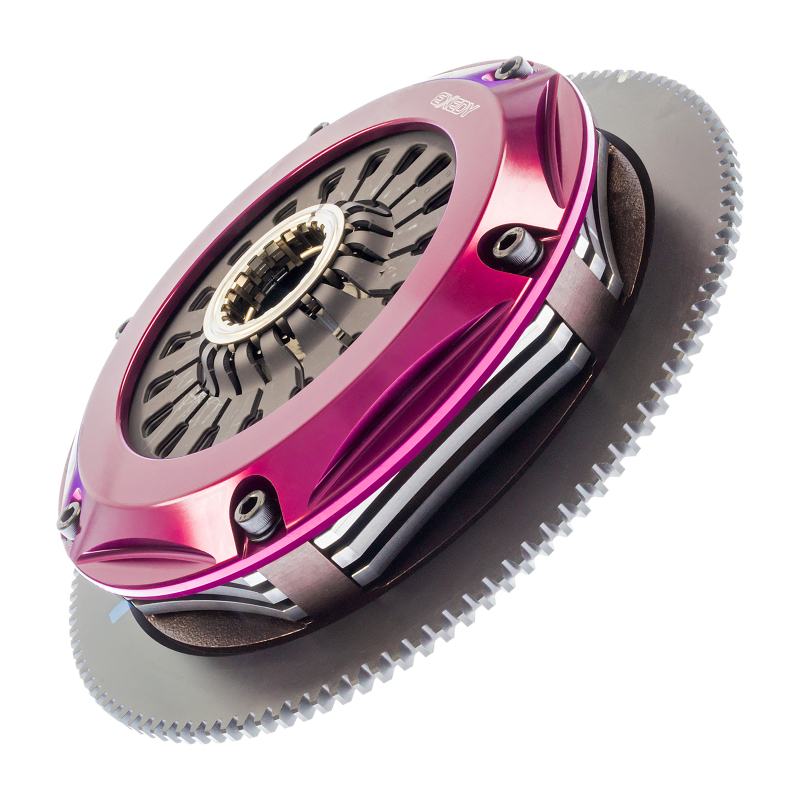

This model has three plates and is developed specifically for high power applications such as drag racing. It handles high torque loads and shifts smooth, and because of the lightweight clutch discs, you can reduce your shift times.
EXEDY Lightweight Flywheel
EXEDY Lightweight Flywheels combine low weight, low inertia and high thermal capacity. They are designed for light to moderately tuned racing cars for drag racing, autocross and rally events, as well as street usage. They are made from solid one-piece billet chromoly steel or chromoly steel forgings. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the airflow which improves the cooling of the clutch.
The ring gear teeth are integrated onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel and has the possibility of separating from the flywheel due to the different expansion coefficients of aluminum and steel.
EXEDY lightweight flywheels have passed engineering tests to 15,000-18,000 RPM. They are guaranteed not to fail to the said RPM, and are all SFI approved.
Quick Specs
- Disk Material – Cerametalic Rigid Triple Disc
- Torque Capacity – 765 Wheel ft/lbs
- Push style Clutch
- Pedal Feel – light pedal pressure thanks to a half-engaged “zone” provided by the patented clutch “cushion” function
- Developed for high powered street cars and race cars with up to approximately 600TQ @ FW.
- SFI Certification

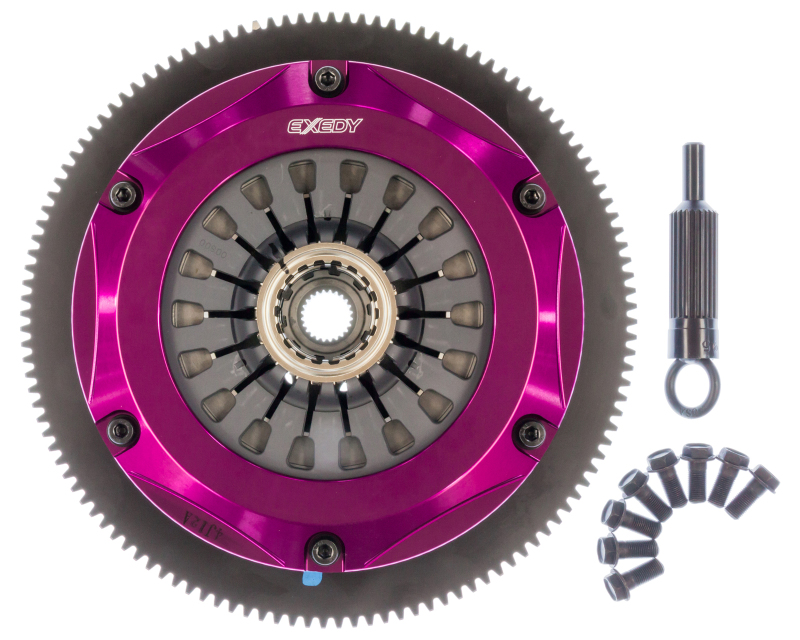

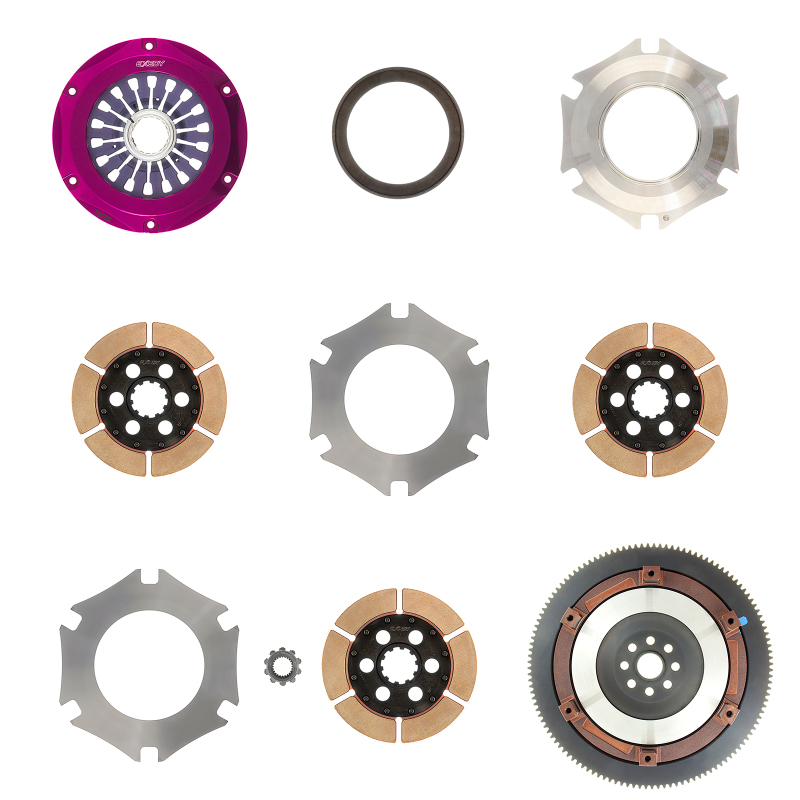

Kit Includes
- Purple Anodized Forged Aluminum Clutch Cover
- Lightweight Chromoly Steel Flywheel
- Flywheel Bolts
- Clutch Alignment Tool
