Description

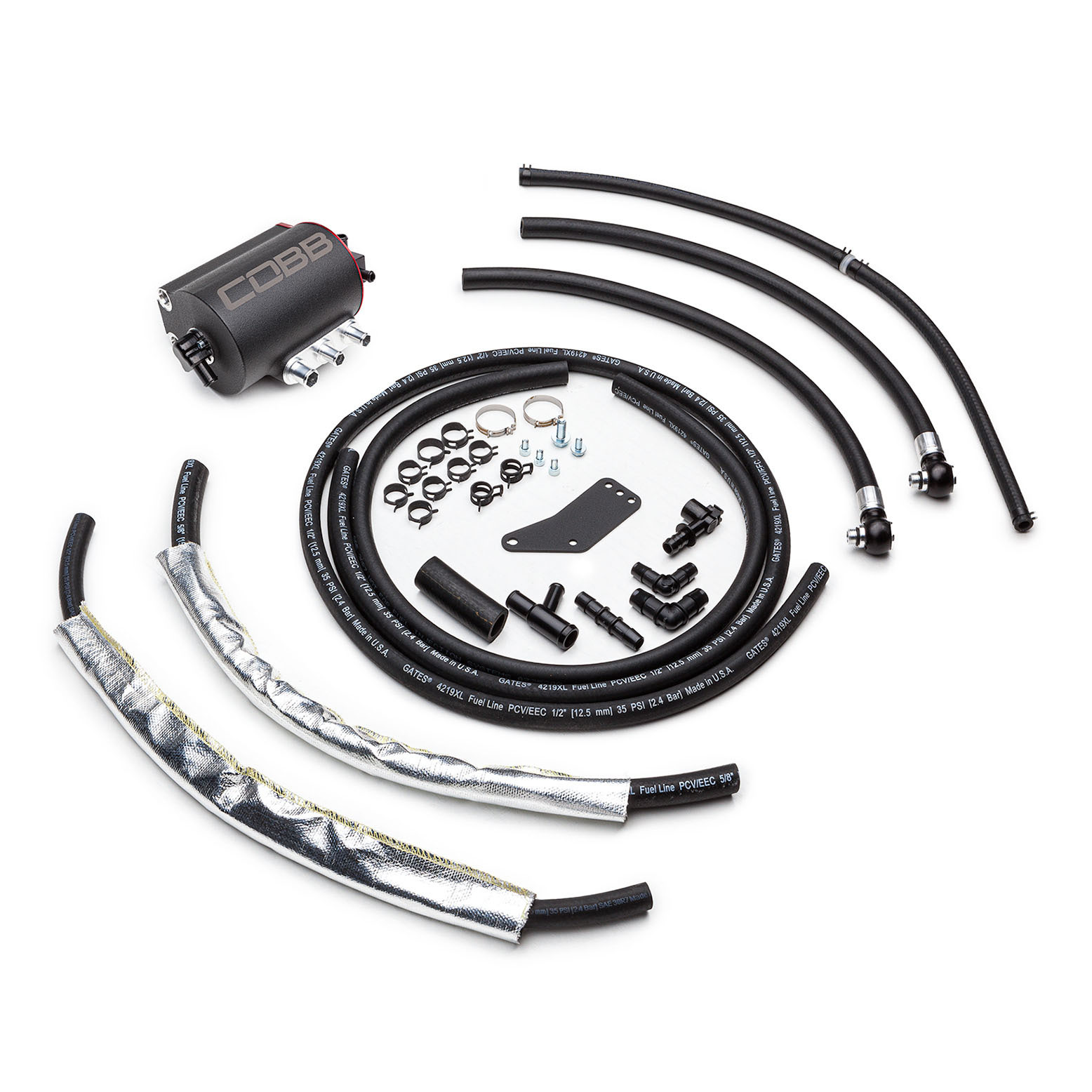

The COBB Air/Oil Separator is placed within your Subarus crankcase ventilation system and helps to prevent oil vapors from being introduced into the intake system. The COBB Air Oil Separator has been developed in partnership with IAG Performance and offers exclusive features.
- 1 Liter Holding Capacity
- Integrated ORB Ports
- Compact Cast Aluminum Body w/ Black Powdercoat Finish
- Heat Shielding on Crankcase Breather and Oil Return Lines
- Coolant Bleeder Valve
- Bespoke COBB Color Combination
- Laser Etched COBB Logo

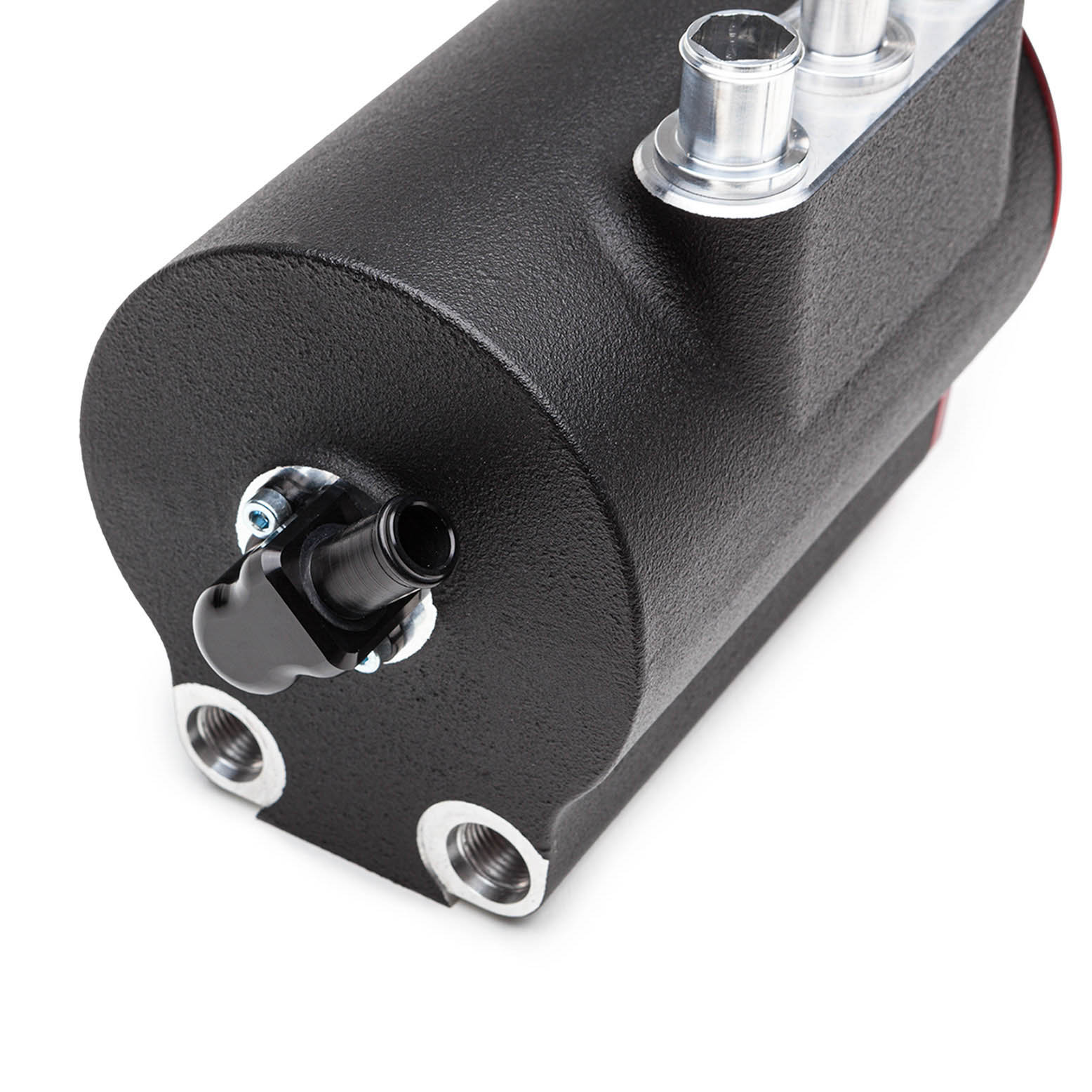

The Subaru EJ engine has 3 ports that vent crank pressure: one on each cylinder head and another on the top of the block. Each engine vent port receives its own connection to the AOS. By giving each engine port its own entrance to the AOS we have allowed for more effective and faster excavation of crankcase pressure. Additionally, this reduces overall system pressure. With a 4″ OD and 5.75″ height, the AOS has an approximate 1 liter of holding capacity. The larger the AOS, the more power you can safely make without having to worry about the AOS overfilling.
The bottom of the AOS is shaped like a snail, redirecting positive crank pressure into the same swirl pattern produced by the 3 side ports. Allowing maximum oil drainage while separating oil from the air in all the venting ports.
FEATURES
Subaru Air/Oil Separator FXT 2004-2008, WRX 2002-2007, STI 2004-2007
- Compact Cast Aluminum Tank Design
- Bespoke COBB Anodizing on Caps
- Wrinkle Black Powder Coated Canister
- Laser Etched COBB Logo
- Developed in Partnership with IAG Performance
Emissions
50 State Legal.
This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer’s application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number:
