Quick Specs
- 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
- Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
- Programmable center LED is 87% larger than original AEM gauges
- 24 green outer LEDs for quick reference to engine parameter
- User selectable standard or metric display (0-150 PSI/0-10 BAR)
- Peak/Recall via gauge face buttons
- User selectable threshold warnings (excl. Volts)

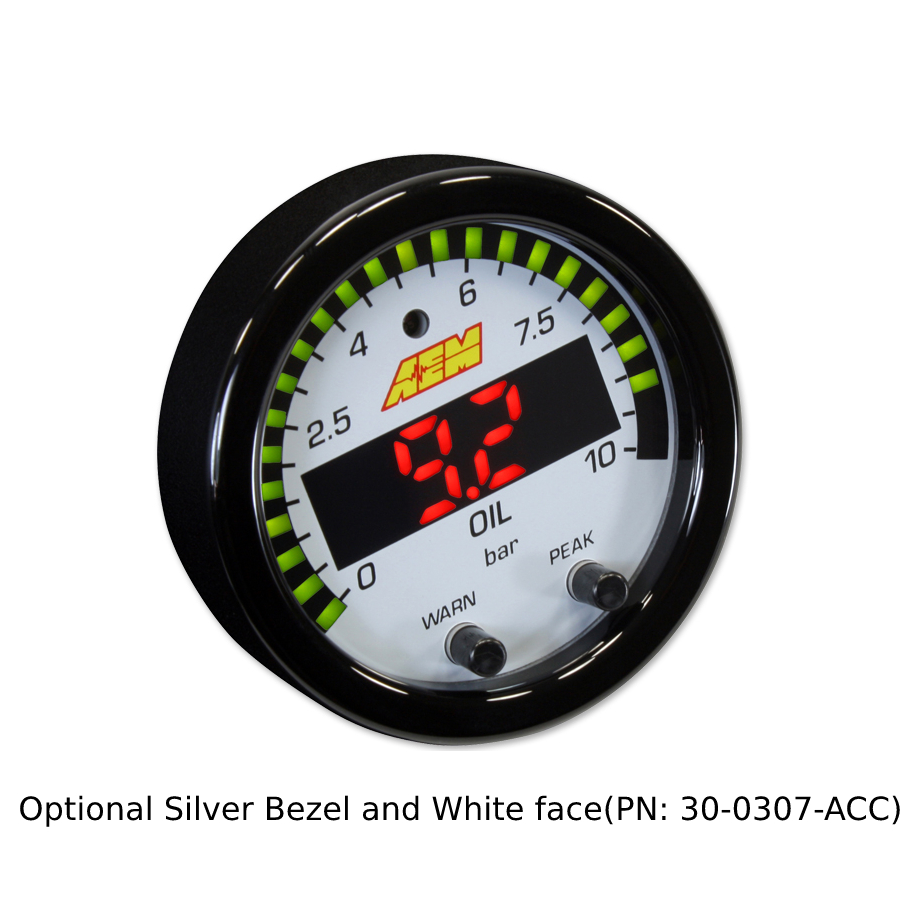

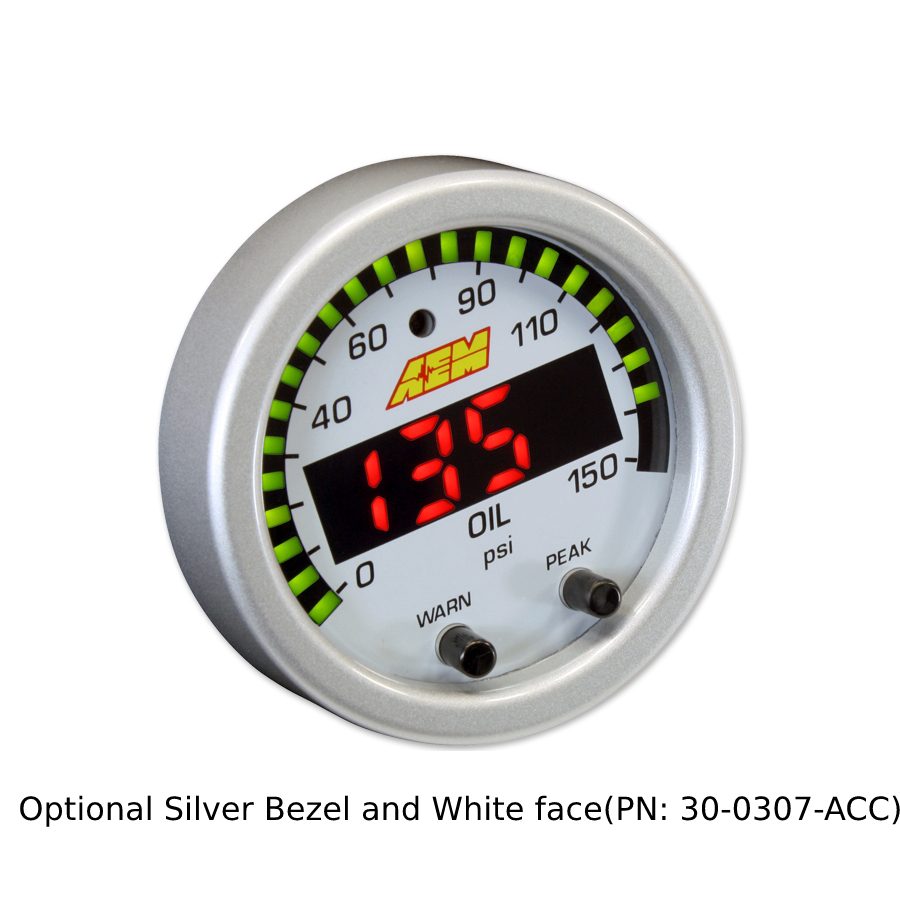

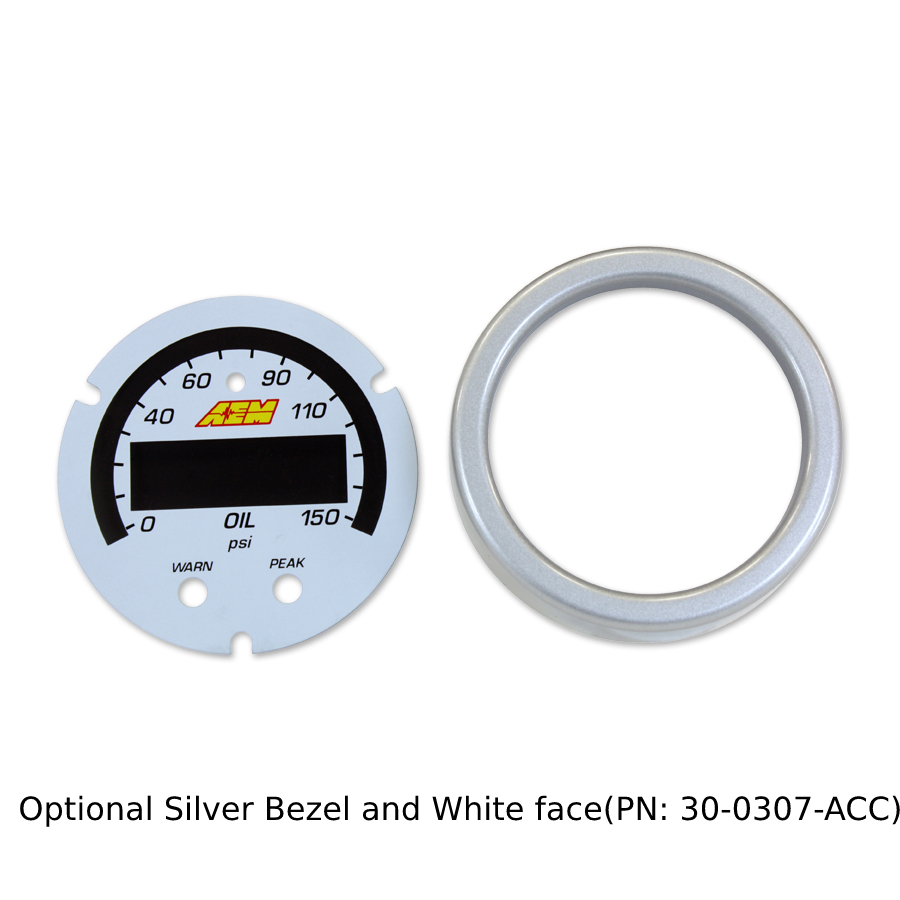

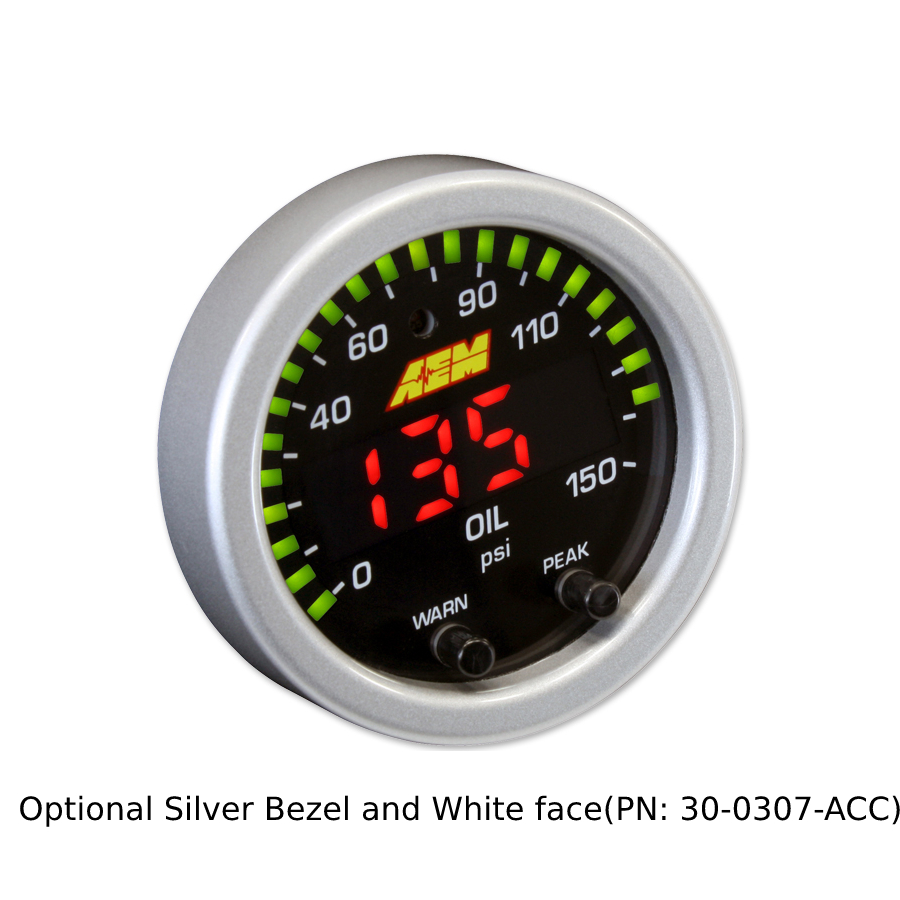

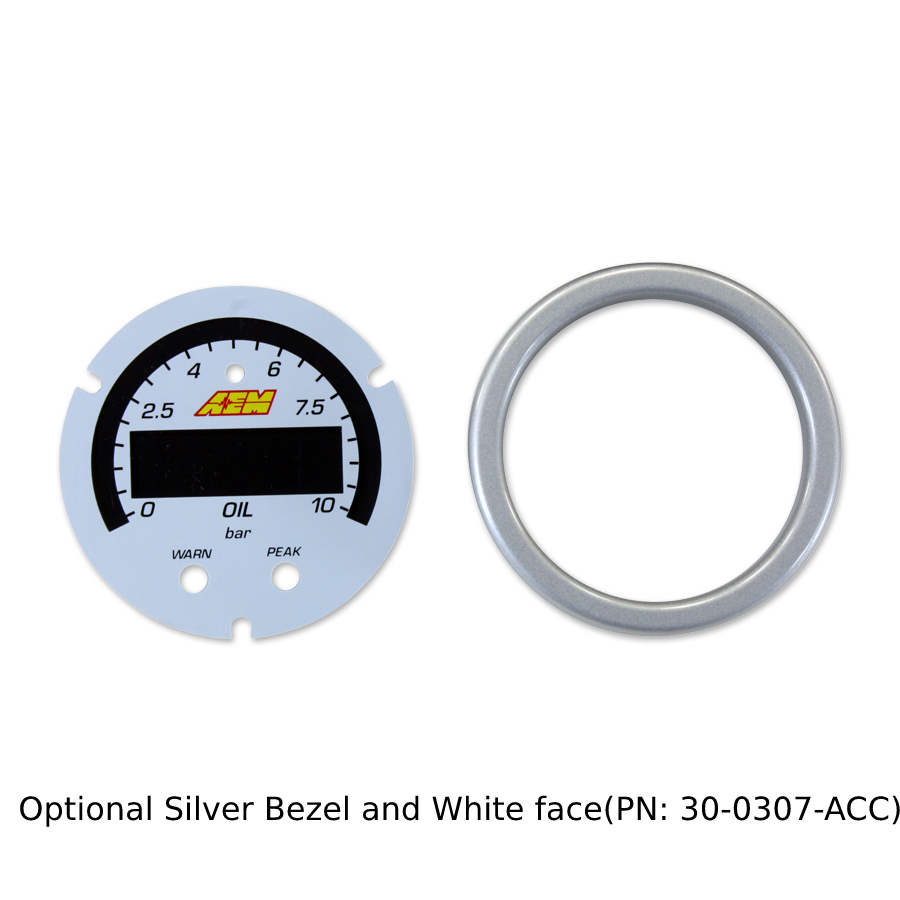

- Optional silver bezel with white faceplate(s) accessory kits available (sold separately)
- AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
- 0-5v analog outputs for transmitting data to EMS or Data Logger
- Auto dimming sensor delivers ideal display brightness
- Positive locking connectors provide secure connection
RANGE

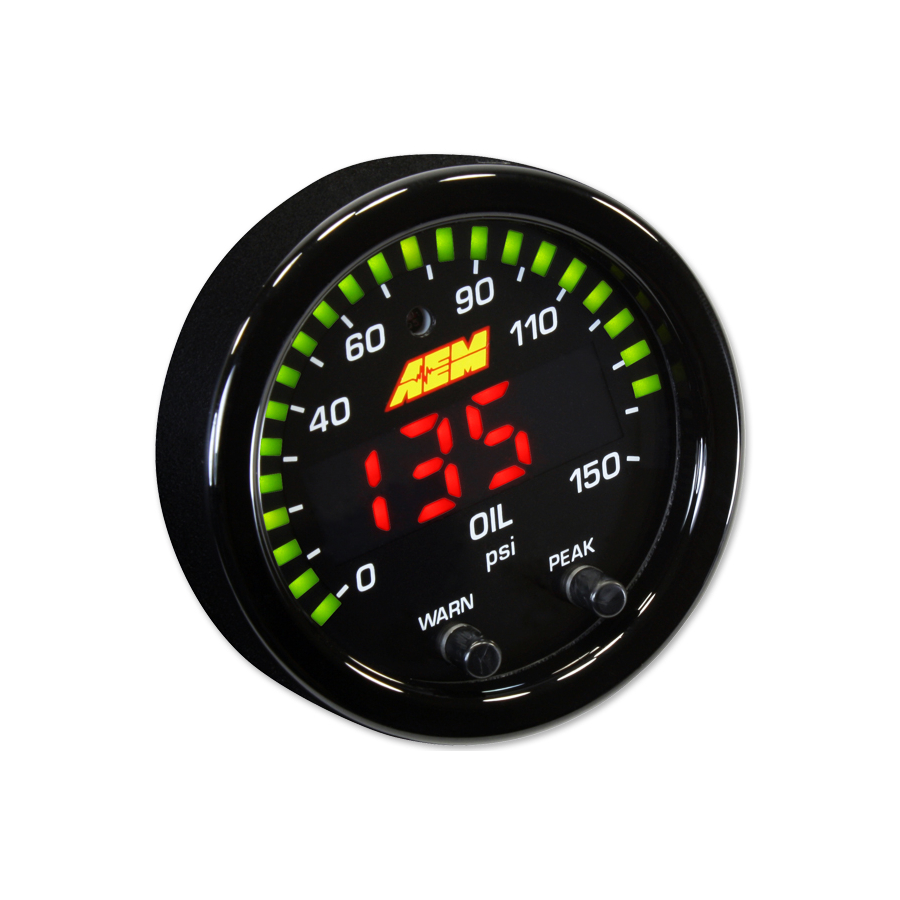

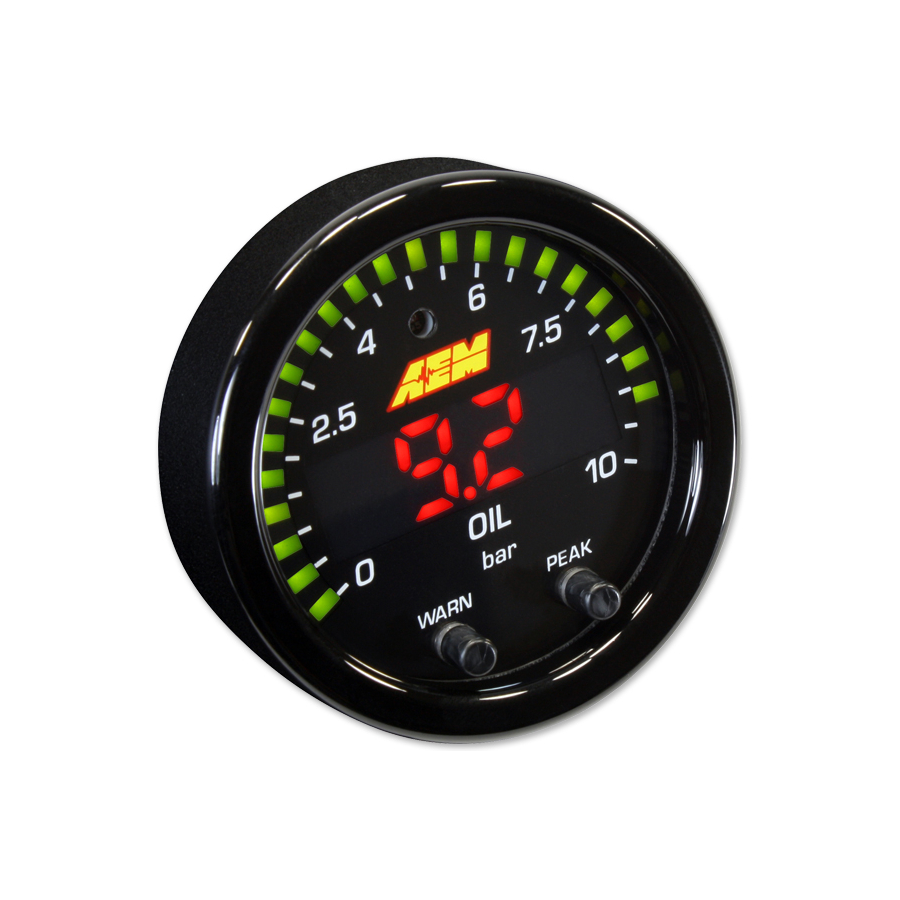

- Oil Pressure (0-150 PSI/0-10 BAR)
KITS INCLUDE

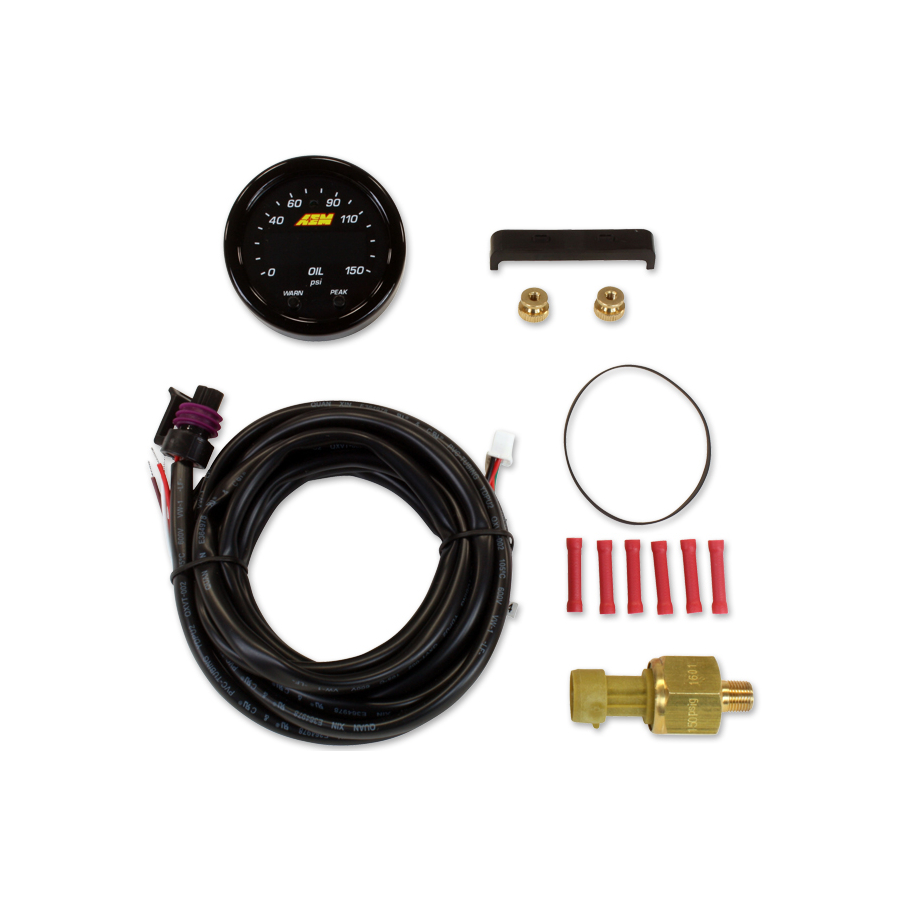

Includes: X-Series Boost Pressure Gauge, 150PSIg sensor, Wiring Harnesses, Black Bezel & Black Faceplate
